SPECS

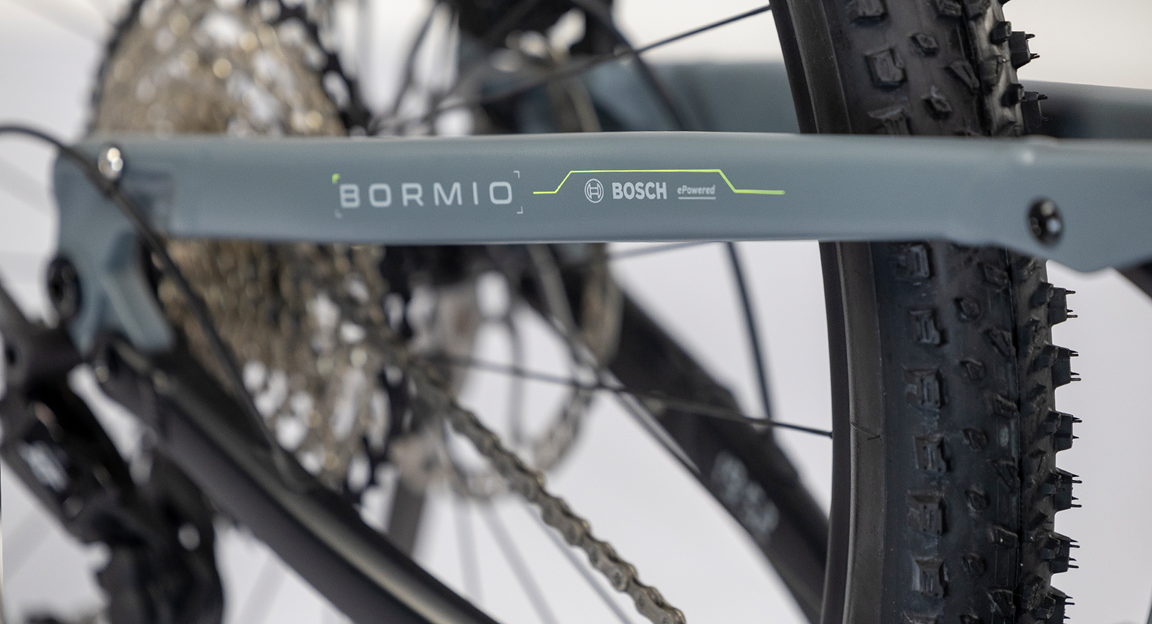

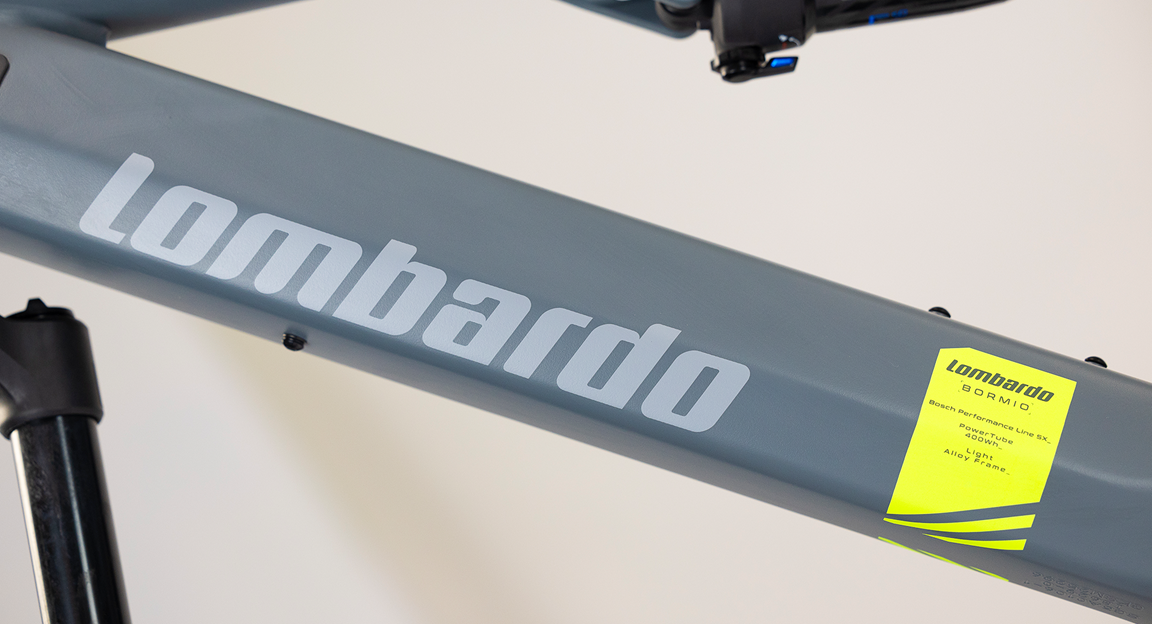

Frame : Full Suspension Carbon 29 148x12mm Rear travel 140mm Integrated battery UDH dropout
Seat post : KS RAGE-i 30.9mm t: 125mm/150mm/170mm

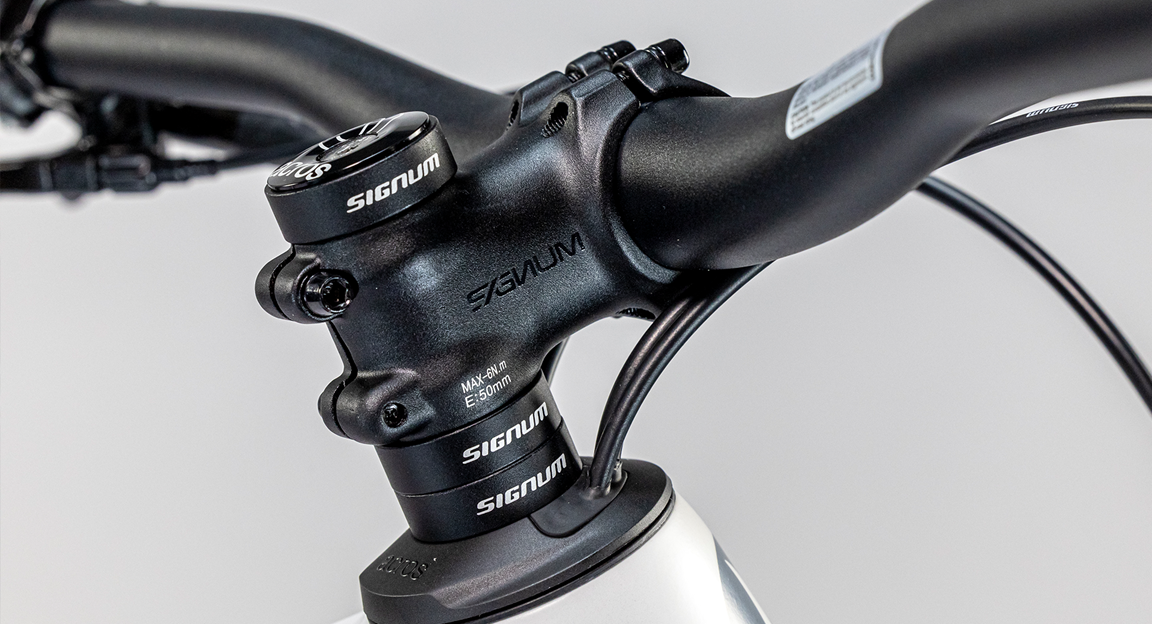

Stem : SIGNUM 35x55mm
Shift lever : SHIMANO Slx M7100 12speed
Cassette : SHIMANO CS-M7100 10-51t
Tyres :
- F: VITTORIA Syerra 29×2.4 Dark Patch
- R: VITTORIA Syerra 29×2.4 Dark Patch
Saddle : FIZIK Terra Ridon X5 Alloy

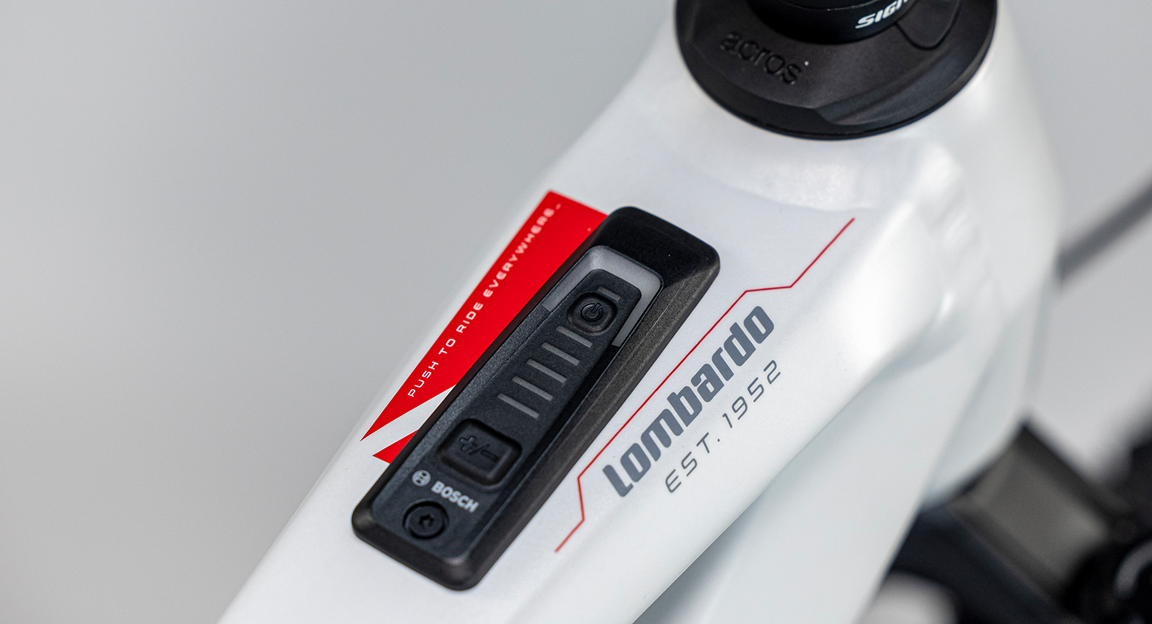

Display : BOSCH System Controller + Mini Remote
Fork : ROCK SHOX Pike Select Charger RC Air travel 140mm 29"
Handlebar : SIGNUM Aluminium 31.8x780mmn w/HERRMANS Shark DD38R grips
Rear derailleur : SHIMANO XT M8100 12speed
Crankset : FSA 34T w/CK-745 165mm
Wheels :
- F: SUNRINGLE SR329 EXP 29" 110×15 tubeless ready
- R: SUNRINGLE SR329 EXP 29" 148×12 tubeless ready
Brakes : SHIMANO MT420 4 pistons rotor 203-203

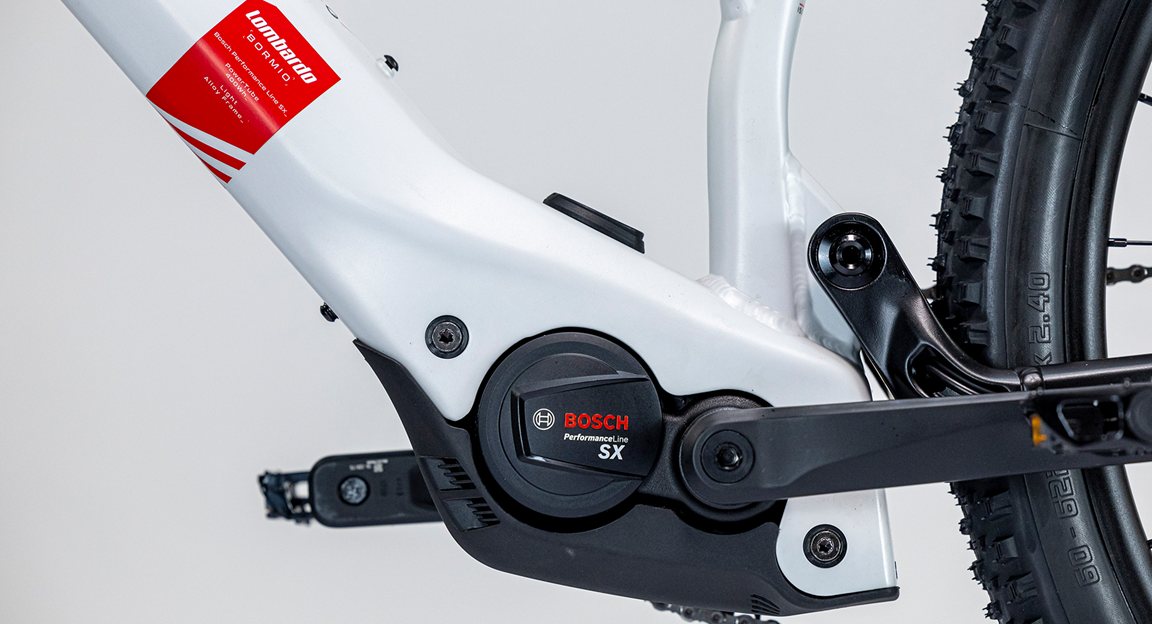

Drive unit : BOSCH Performance SX 36V 250W 55Nm Torque Smart System
Battery : BOSCH CompacTube 400Whm

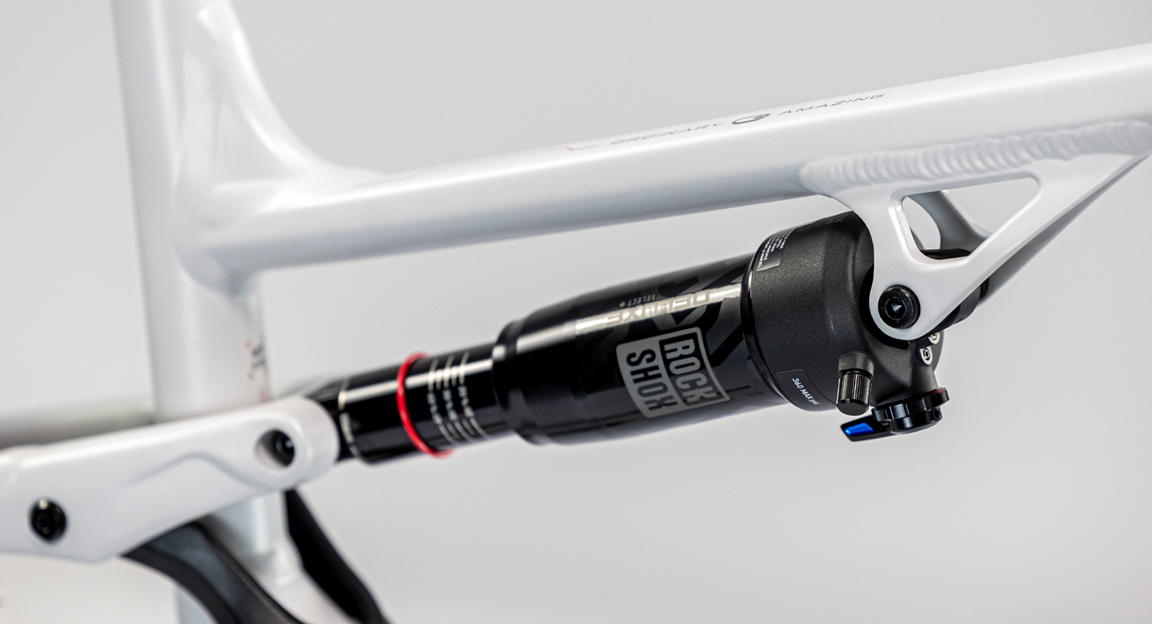

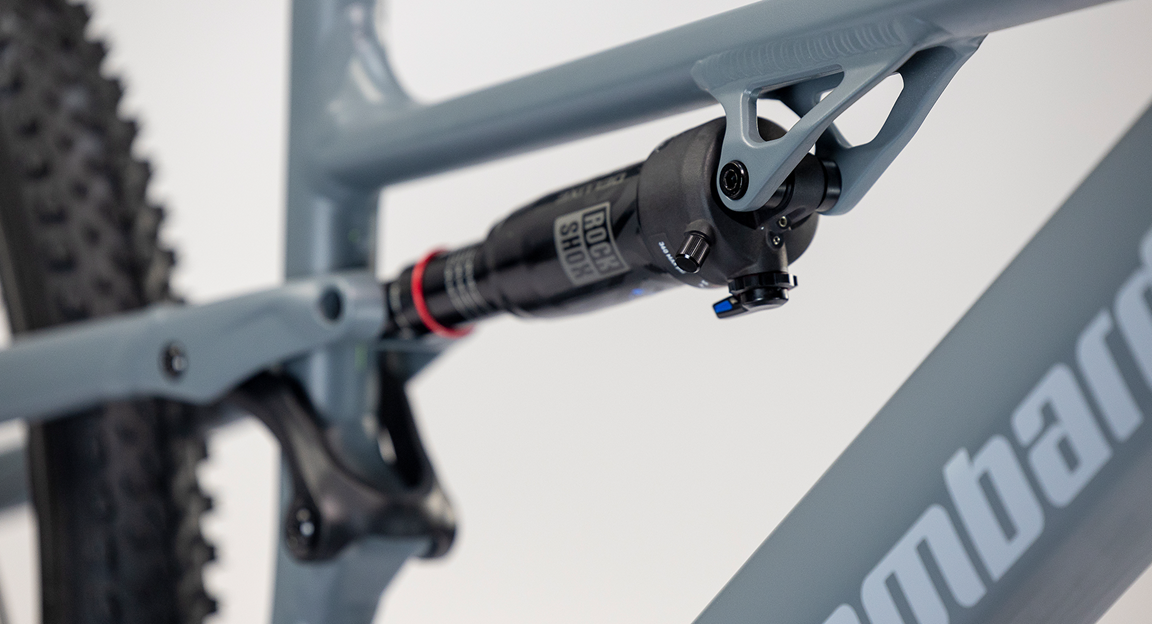

Rear Shock : ROCK SHOX Deluxe Select+ 230×65

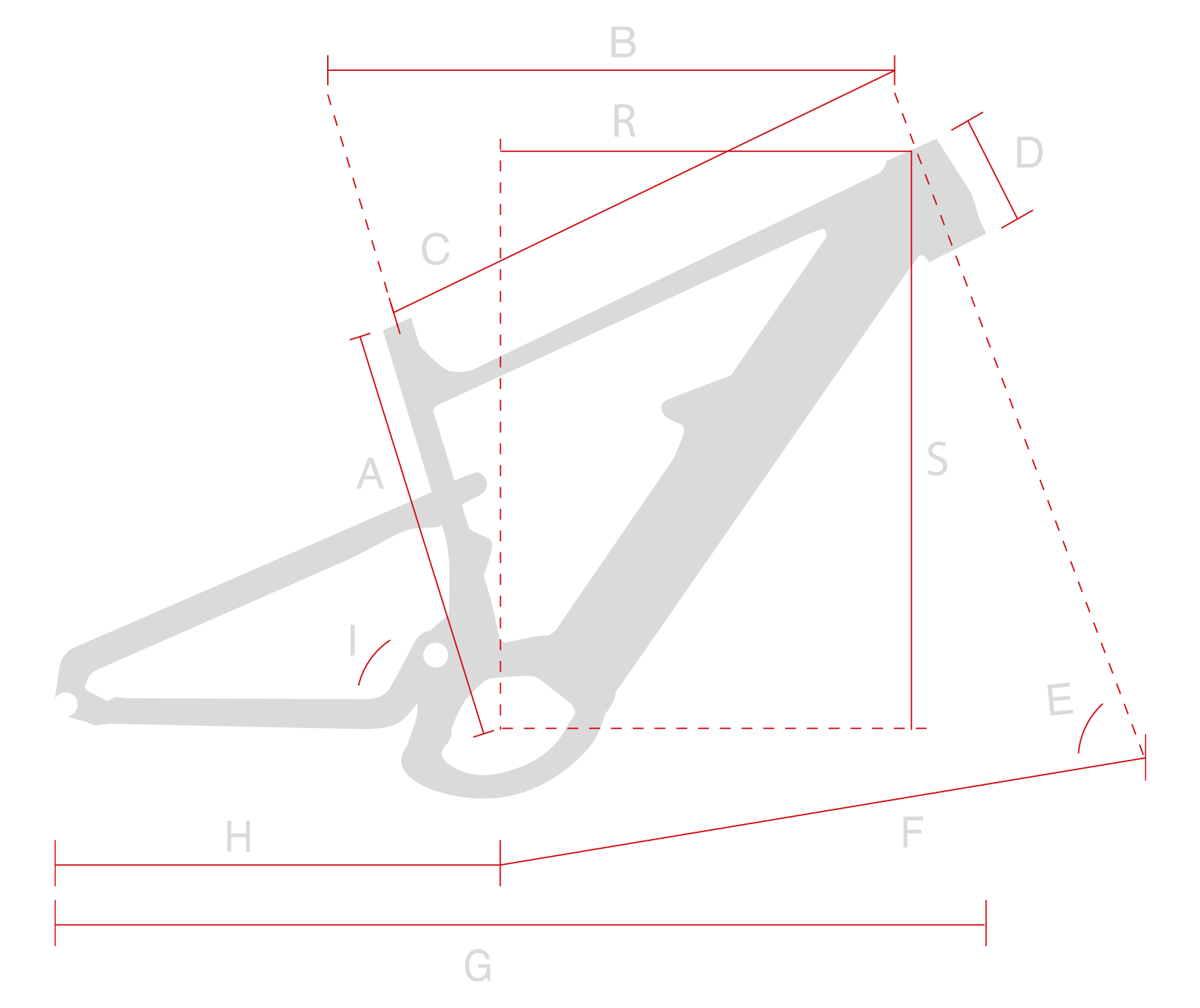

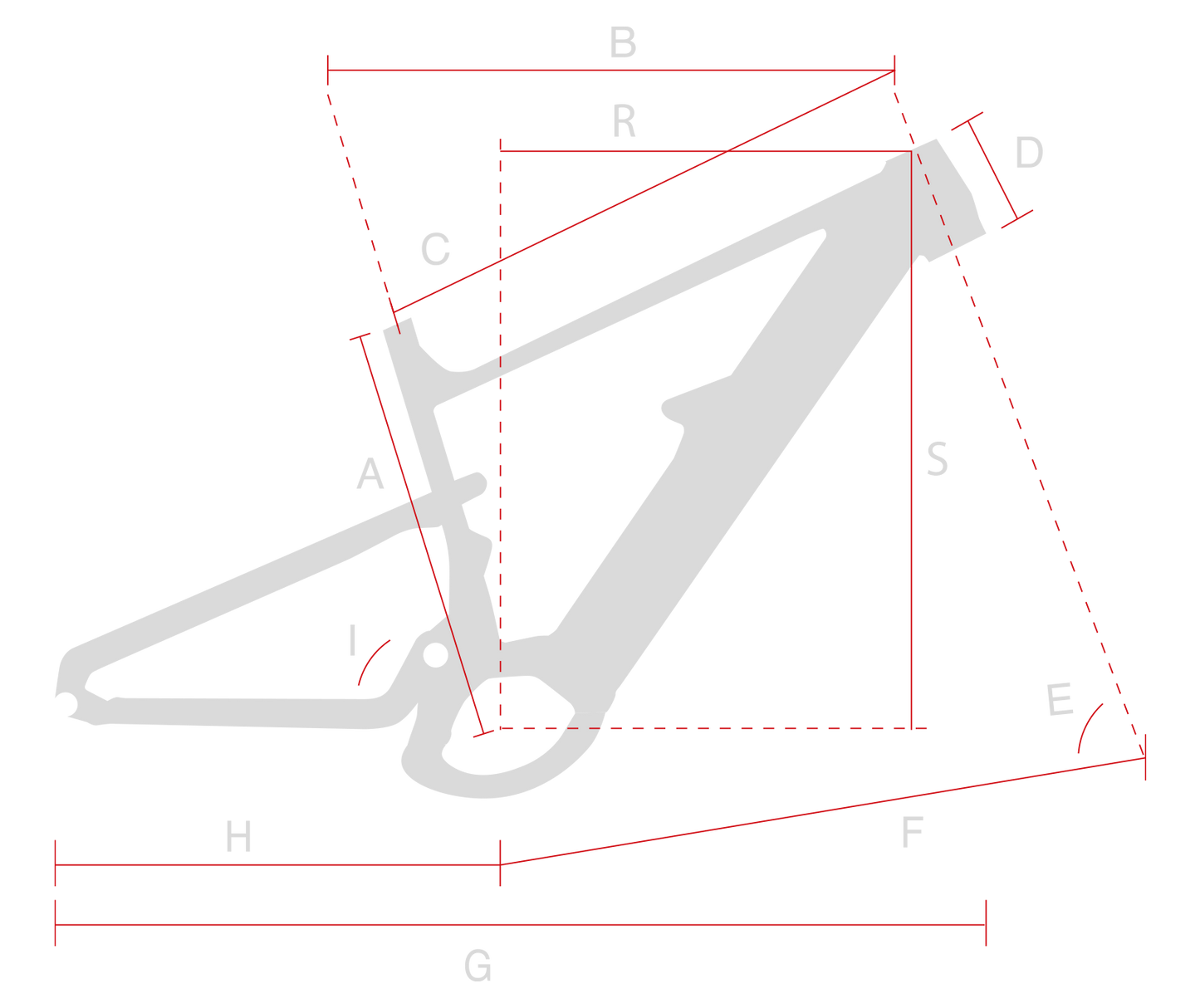

BIKE GEOMETRY
40 : A:400 | B: 590 | C: - | D: 160 | E: 65 | F: 761 | G: 1115 | H: 450 | I: 75 | R: 435 | S:608
44 : A:440 | B: 601 | C: - | D: 167 | E: 65 | F: 784 | G: 1233 | H: 450 | I: 75 | R: 443 | S:626
48 : A:480 | B: 620 | C: - | D: 169 | E: 65 | F: 795 | G: 1245 | H: 450 | I: 75 | R: 450 | S:634
52 : A:520 | B: 640 | C: - | D: 170 | E: 65 | F: 820 | G: 1267 | H: 450 | I: 75 | R: 470 | S:635
