SPECS

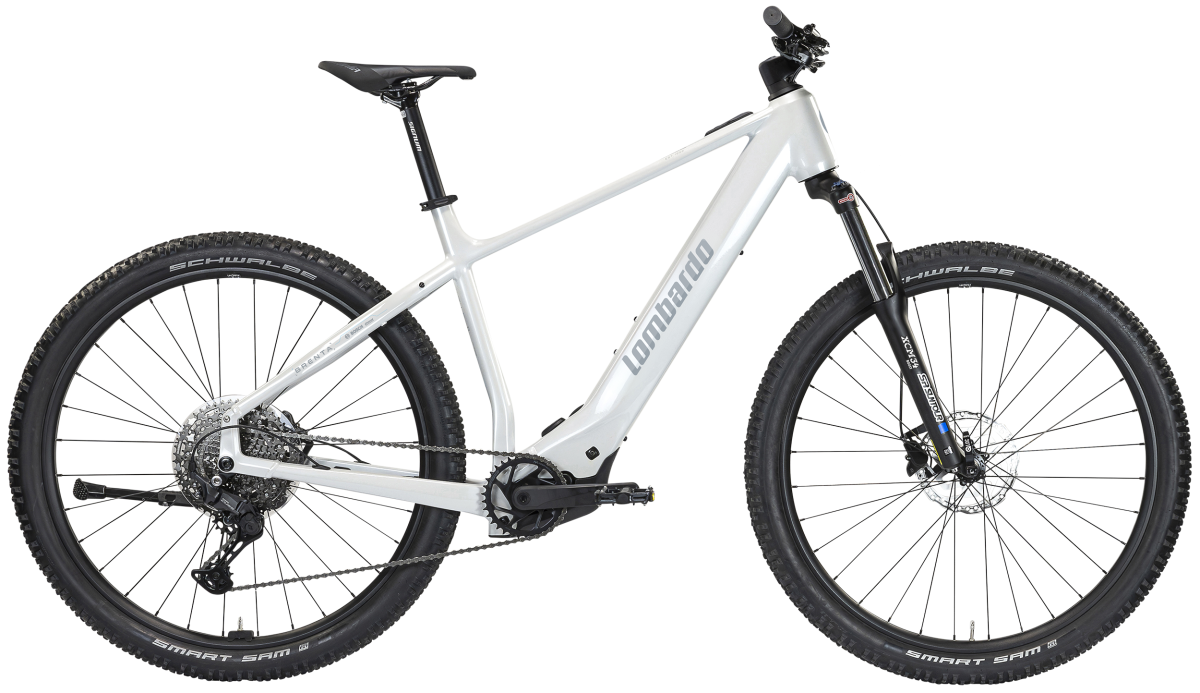

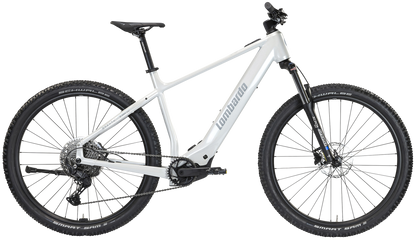

Frame : Mtb 29" Alloy 6061 148mmx12mm Integrated battery
Seat post : SIGNUM Alloy Black 31,6mm
Stem : SIGNUM 0° 31,8x60mm
Shift lever : SHIMANO Slx M7100 12speed
Cassette : SHIMANO LG400 11-50t
Tyres : SCHWALBE Smart Sam kevlarguard 29" x 2,60
Saddle : SELLE ITALIA X3 Boost

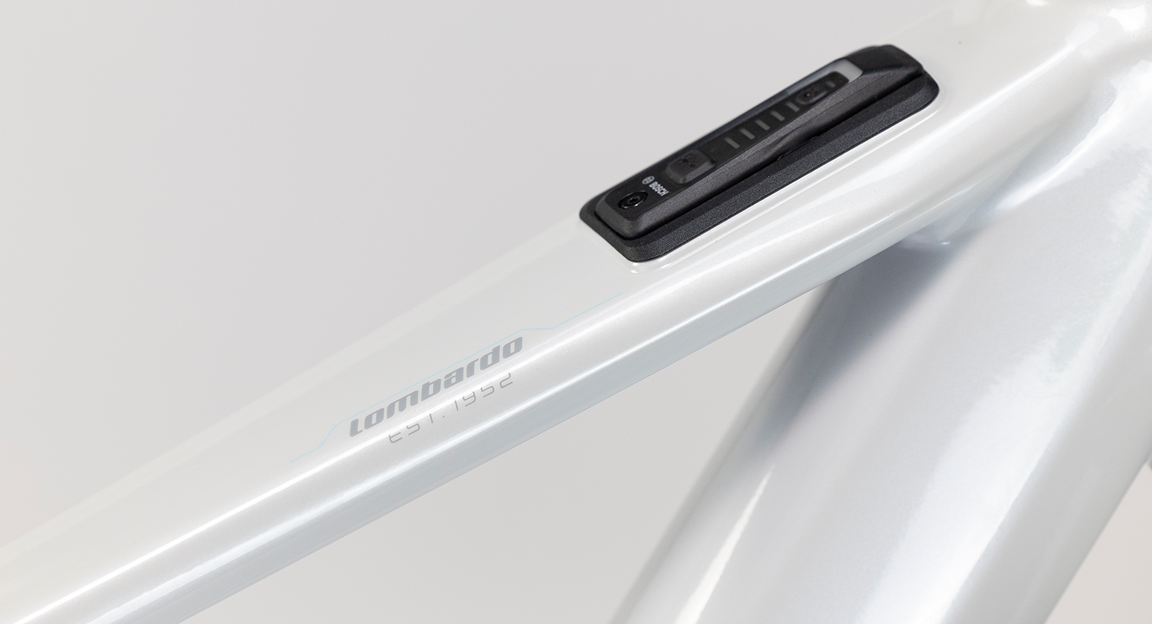

Display : BOSCH System Controller + Mini Remote for dropbar
Fork : SUNTOUR XCM34 Coil Boost travel 120mm
Handlebar : SIGNUM Alloy Black Oversize 760mm w/HERRMANS Diamond DD25 grips
Rear derailleur : SHIMANO CUES U6000 11speed
Crankset : FSA 34T w/CK-220 170mm
Wheels :
- F: SIGNUM 29" 110×15 tubeless ready
- R: SIGNUM 29" 148×12 tubeless ready
Brakes : SHIMANO MT200 2 pistons rotor 180-180

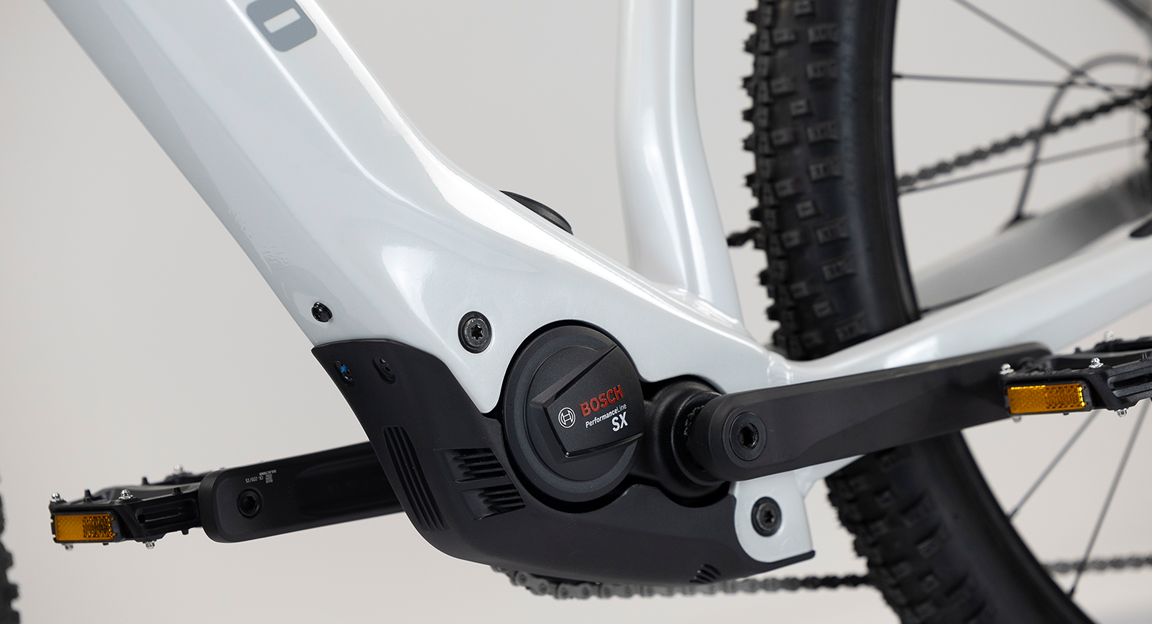

Drive unit : BOSCH Performance SX 36V 250W 55Nm Torque Smart System
Battery : BOSCH CompacTube 400Wh

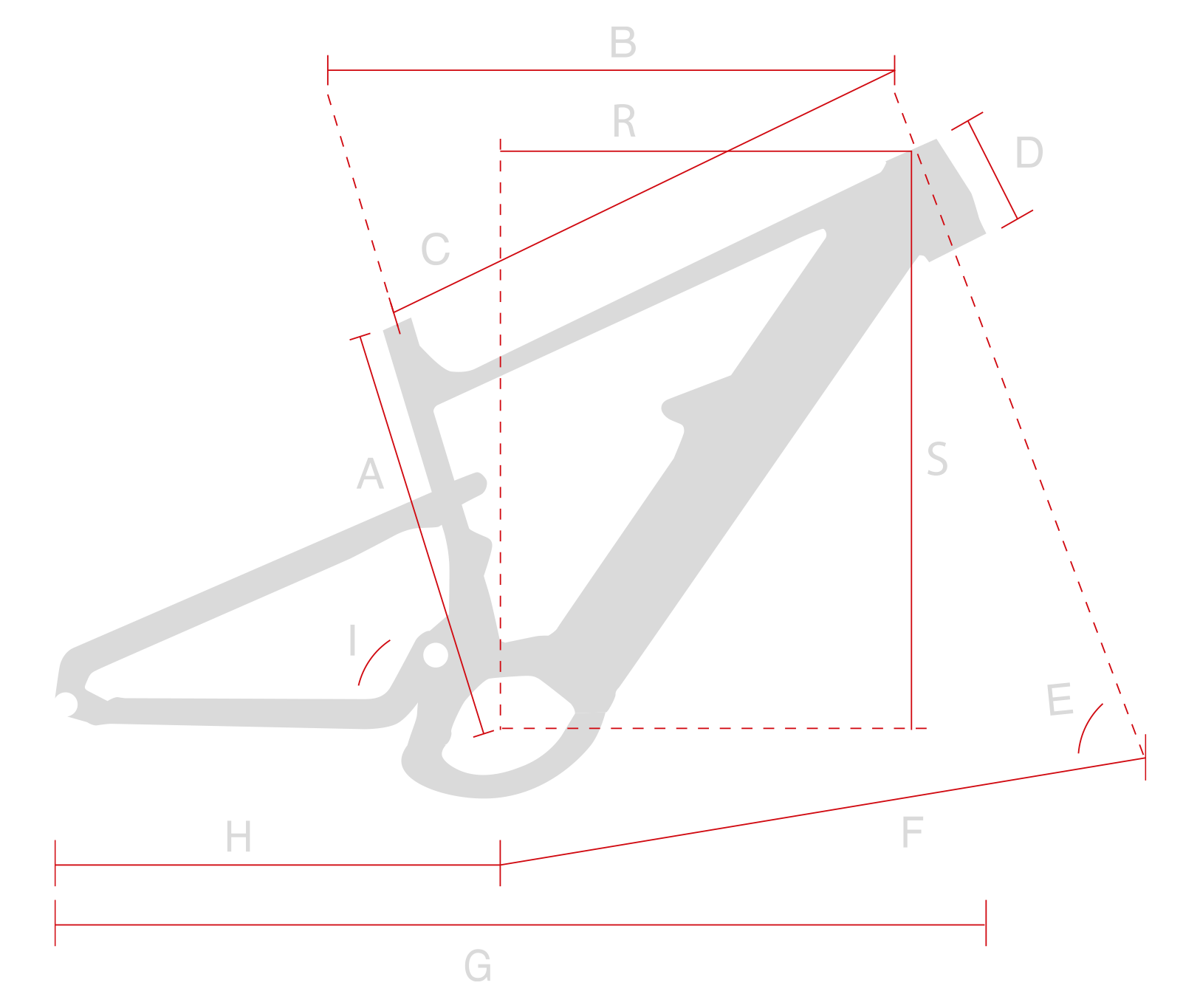

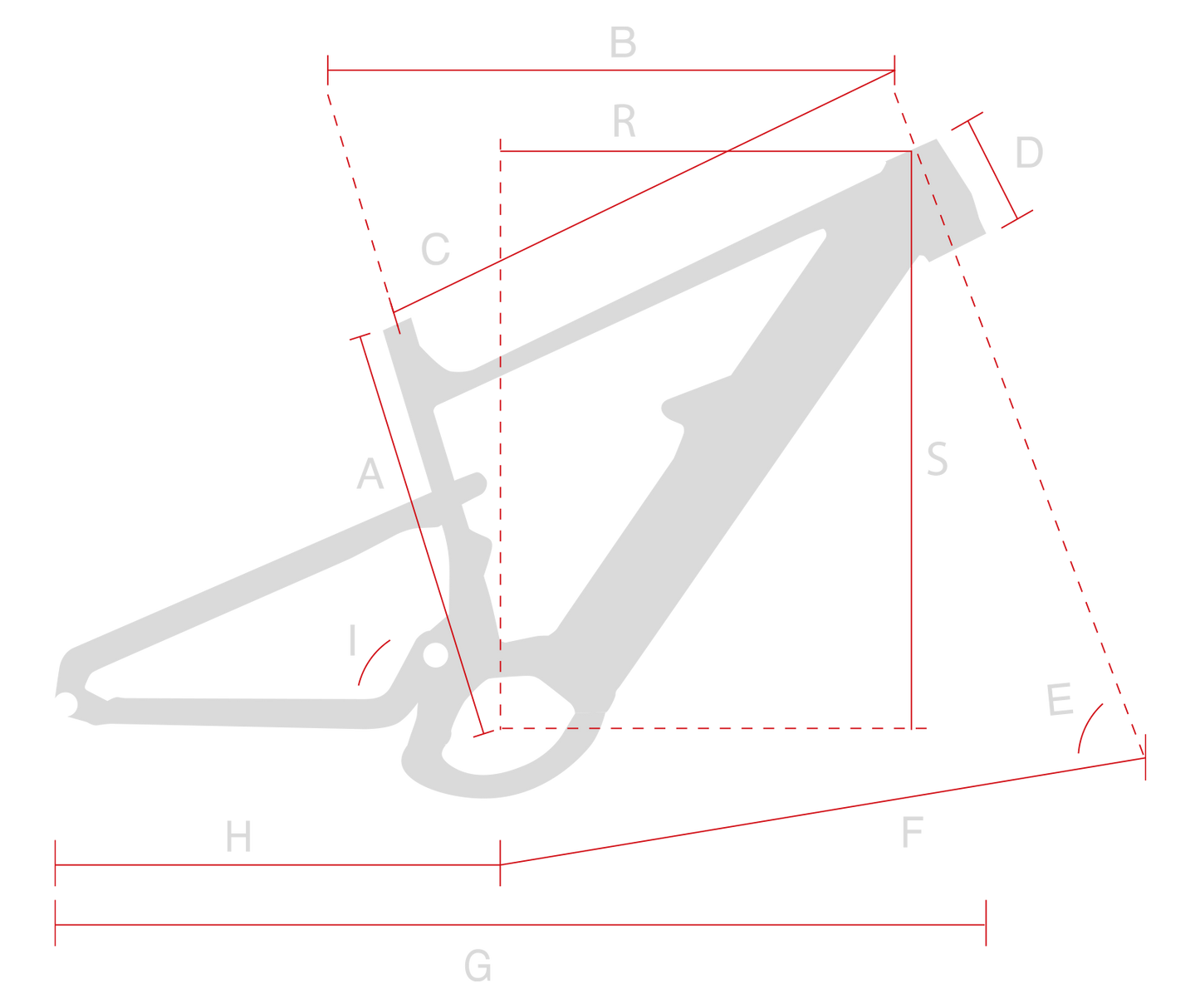

BIKE GEOMETRY
40 : A: 400 | B: 590 | C: 587 | D: 140 | E: 67 | F: 740 | G: 1214 | H: 480 | I: 74 | R: 420 | S: 657
45 : A: 450 | B: 608 | C: 587 | D: 140 | E: 67 | F: 740 | G: 1214 | H: 480 | I: 74 | R: 435 | S: 657
51 : A: 508 | B: 624 | C: 608 | D: 140 | E: 67 | F: 740 | G: 1214 | H: 480 | I: 74 | R: 435 | S: 658
