LOMBARDO Chamonix 1.0

SPECS

Frame : Mtb 29" Alloy 6061 148mmx12mm Integrated battery

Seat post : SIGNUM Alloy Black 31,6mm

Stem : SIGNUM 0° 31,8x60mm

Shift lever :  SHIMANO Cues U6000 11 speed

Cassette : SHIMANO LG400 11-50t

Tyres : SCHWALBE Smart Sam kevlarguard 29" x 2,60

Saddle : SELLE ITALIA X3 Boost

Display : BOSCH Led remote Smart System

Fork : SUNTOUR XCM32 29" Boost travel 120mm

Handlebar : SIGNUM Alloy Black Oversize 700mm w/HERRMANS Shark DD38R grips

Rear derailleur : SHIMANO Cues U6000 11 speed

Crankset : FSA 34T w/CK-320 crank 170mm

Wheels :

• F: SIGNUM 29" 110×15 tubeless ready
• R: SIGNUM 29" 148×12 tubeless ready

Brakes : SHIMANO MT200 or SHIMANO MT410 Hydraulic Disc Rotor 180-180

Drive unit : BOSCH Performance CX 36V 250W 85Nm Torque Smart System

Battery : BOSCH Powertube 625wh

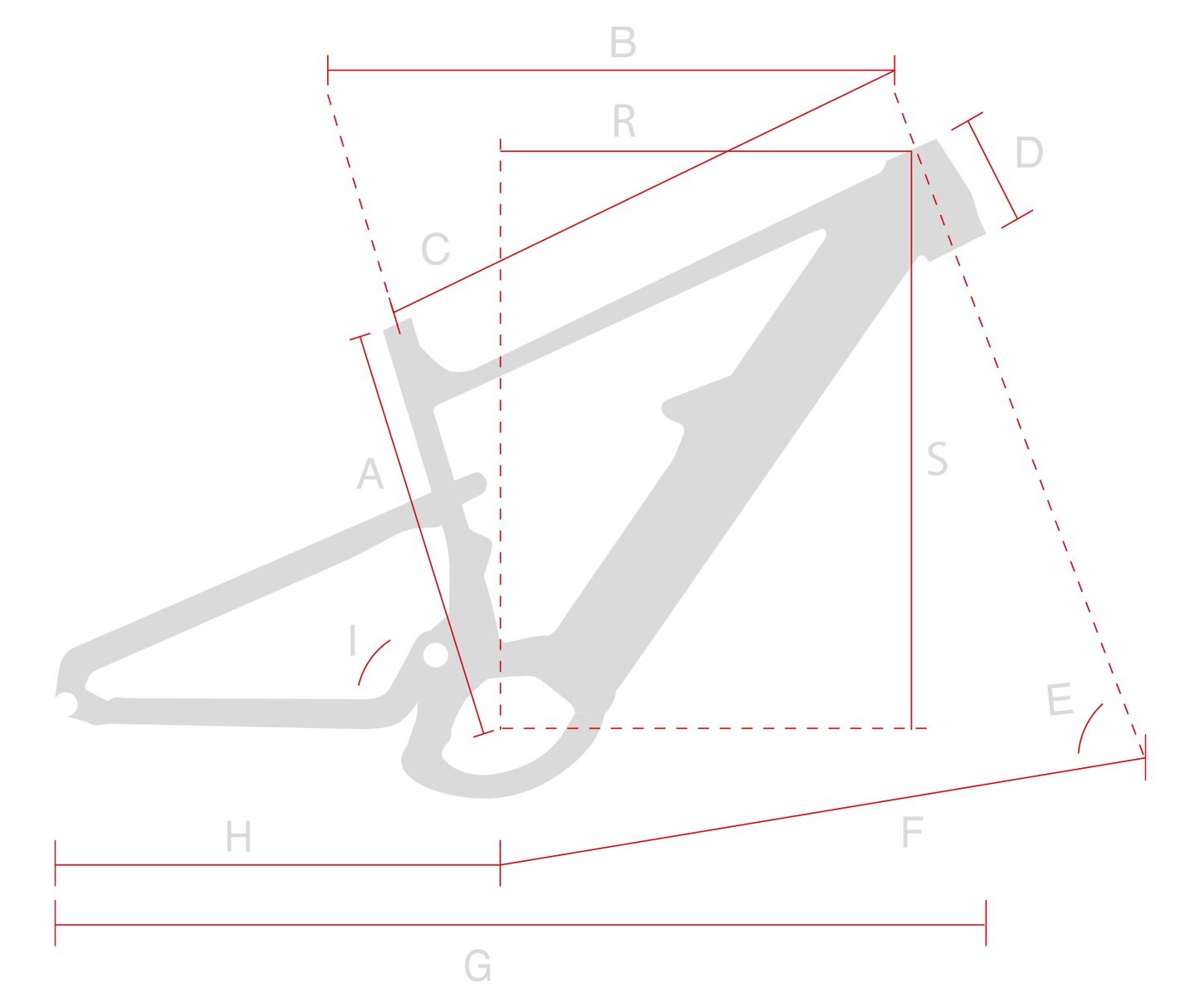

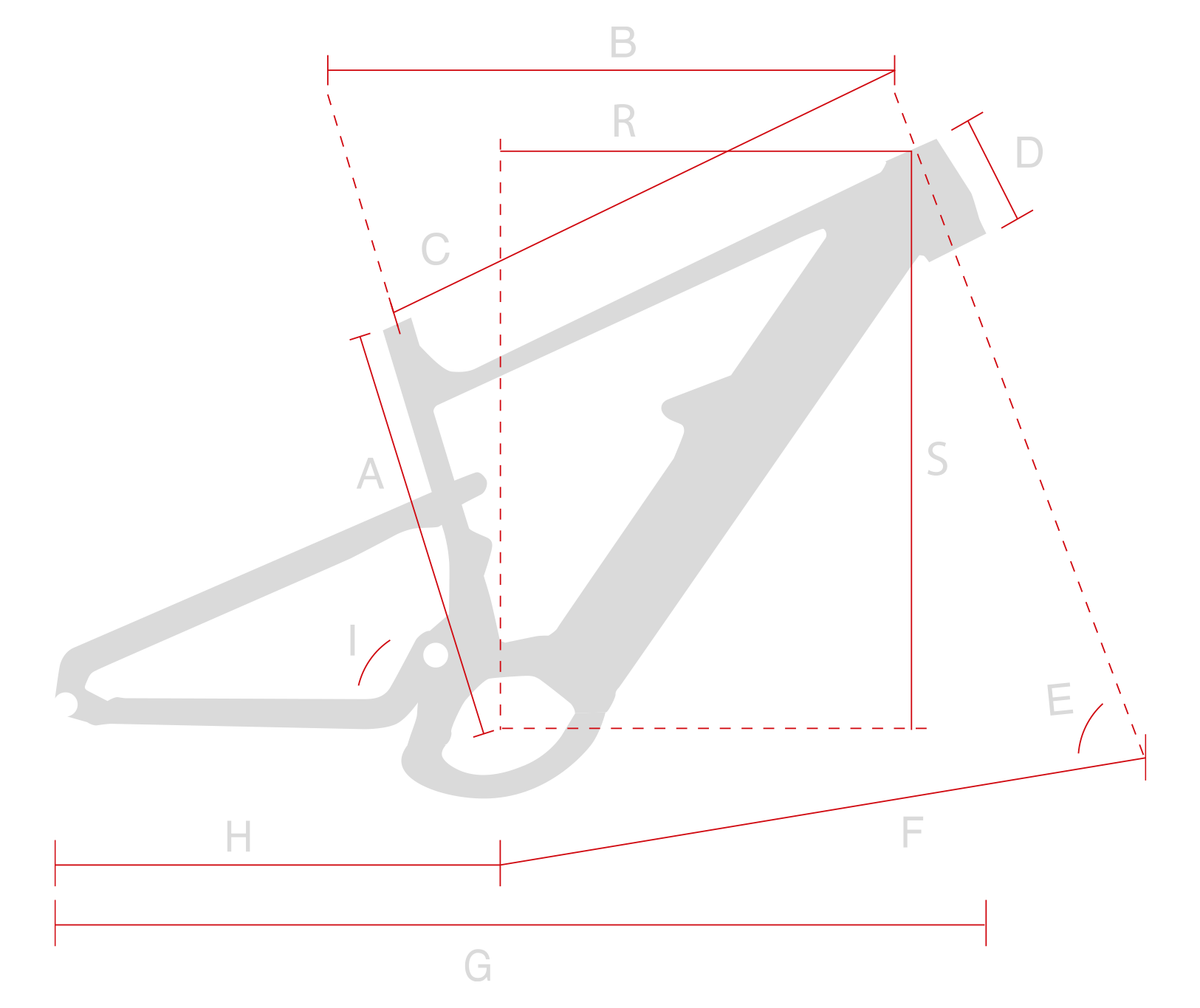

BIKE GEOMETRY

40 : A: 400 | B: 611 | C: 602 | D: 130 | E: 61 | F: 730 | G: 1193 | H: 470 | I: 74

45 : A: 450 | B: 626 | C: 616 | D: 130 | E: 67 | F: 745 | G: 1208 | H: 470 | I: 74

50 : A: 500 | B: 643 | C: 634 | D: 130 | E: 67 | F: 745 | G: 1227 | H: 470 | I: 74
