SPECS
Frame : Full Suspension 29 Alloy 6061 148mmx12mm travel 130mm Integrated battery
Seat post : SIGNUM Alloy Black 30, 4x350mm
Stem : SIGNUM Alloy 31,8
Shift lever : SRAM SX Eagle 12 speed
Cassette : SRAM SX 1210 Eagle Cassette 11-50T
Tyres : SCHWALBE Smart Sam kevlarguard 29"x2,60
Saddle : SIGNUM Mtb Performance line

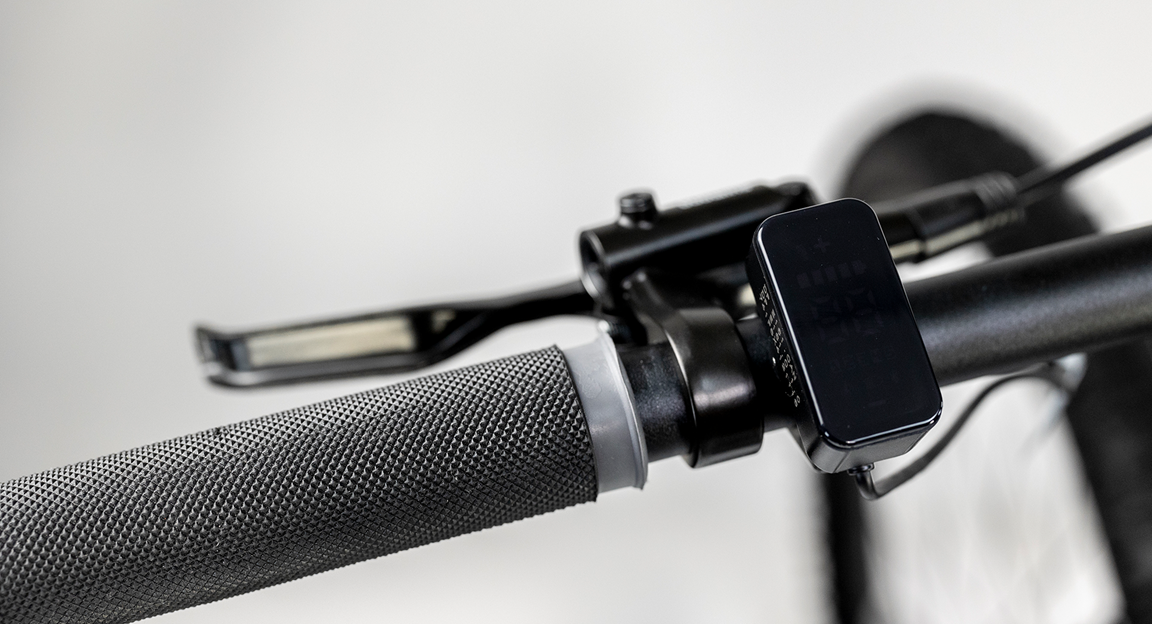

Display : BAFANG E161 led full function set w/bluetooth
Fork : RST Vibe 110 travel 130mm
Handlebar : SIGNUM Alloy oversize 720mm
Rear derailleur : SRAM SX Eagle 12 Speed
Crankset : BAFANG 32t x 170mm
Wheels : SIGNUM Alloy 32h 29" – SHIMANO Hubs
Brakes : SRAM DB8 4 pistons rotor 200-200

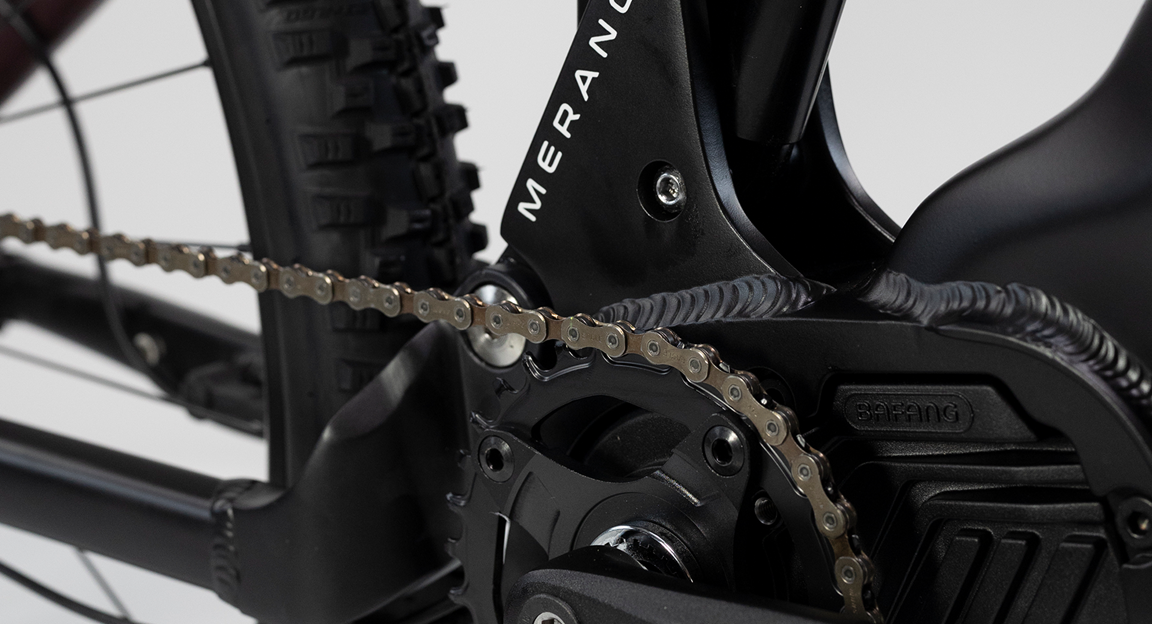

Drive unit : BAFANG M410 mid motor 36V 250w 80Nm
Battery : BAFANG Intube 36V,
630Wh /17.5ah with BMS

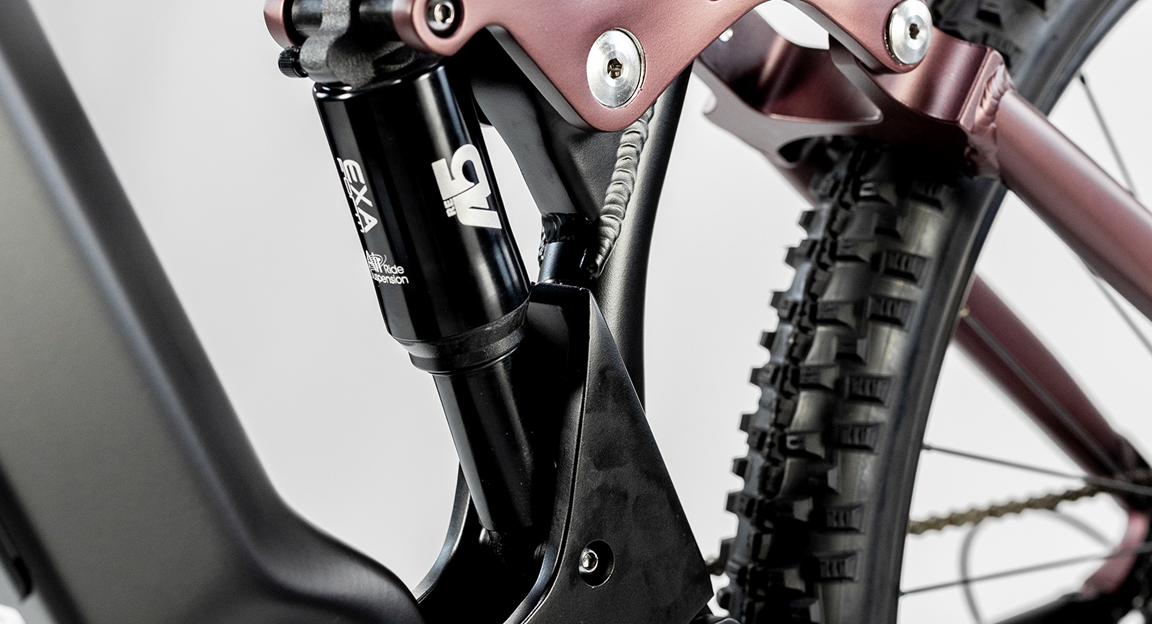

Rear Shock : KS A5 190×50

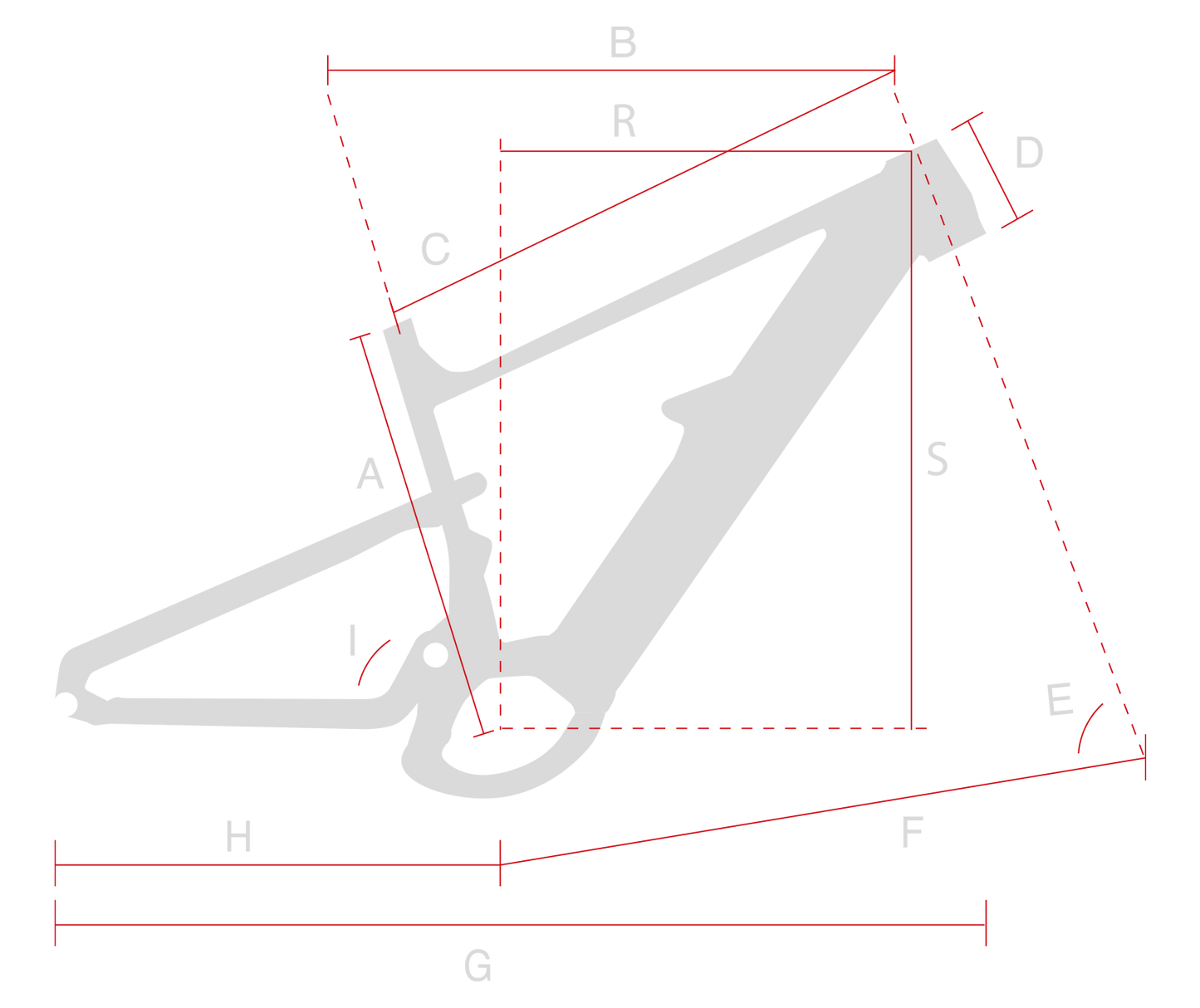

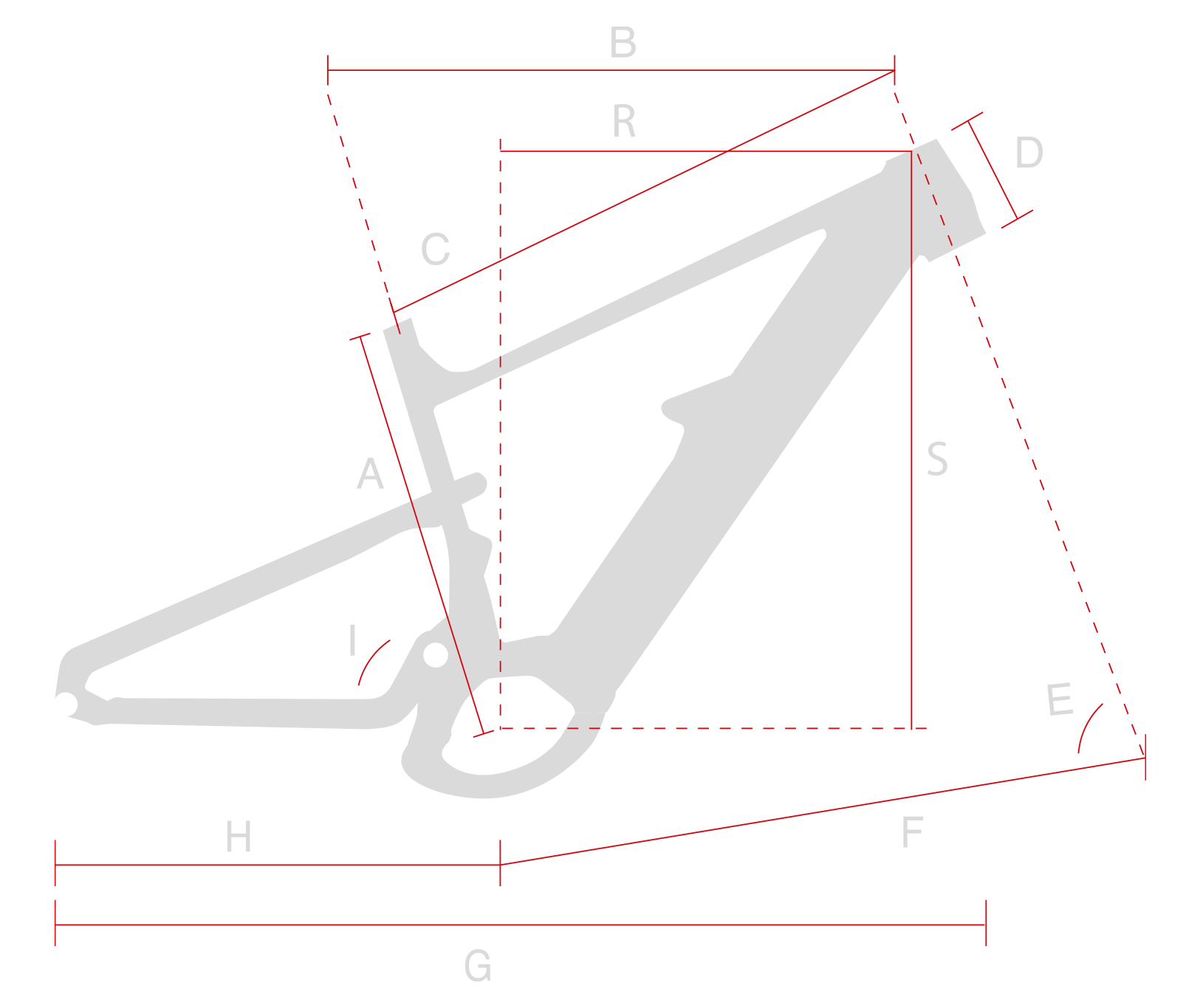

BIKE GEOMETRY
41 : A: 420 | B: 610 | C: 593 | D: 150 | E: 66 | F: 742 | G: 1227 | H: 485 | I: 70 | R: 421 | S: 656
46 : A: 460 | B: 621 | C: 599 | D: 150 | E: 66 | F: 754 | G: 1238 | H: 485 | I: 70 | R: 433 | S: 656
50 : A: 500 | B: 630 | C: 606 | D: 150 | E: 66 | F: 763 | G: 1248 | H: 485 | I: 70 | R: 442 | S: 656
