SPECS

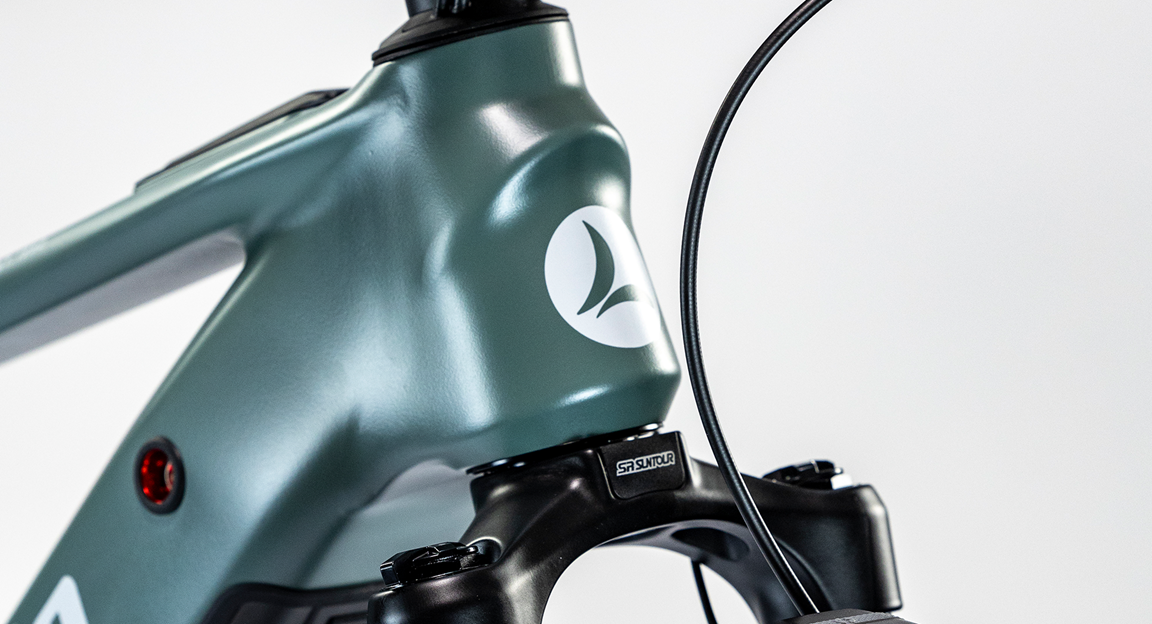

Frame : Full SuspensionAlloy 6061 148x12mm Rear travel 140mm Integrated battery UDH dropout
Seat post : KS RAGE-i 30.9mm t: 125mm/150mm/170mm
Stem : SIGNUM 31.8x50mm
Shift lever : SRAM SX Eagle 12 speed
Cassette : SRAM PC1210 11-50t
Tyres : SCWHALBE Johnny Watts 27.5×2,35
Saddle : SELLE ROYAL Explora Athletic

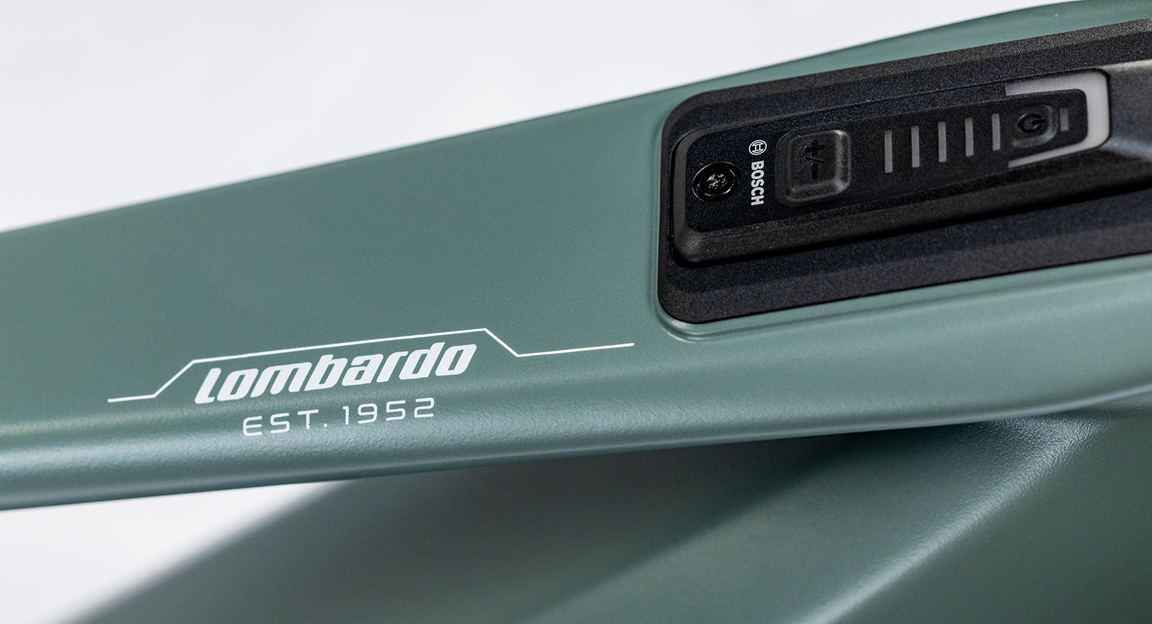

Display : BOSCH System Controller + Mini Remote + Intuvia 100

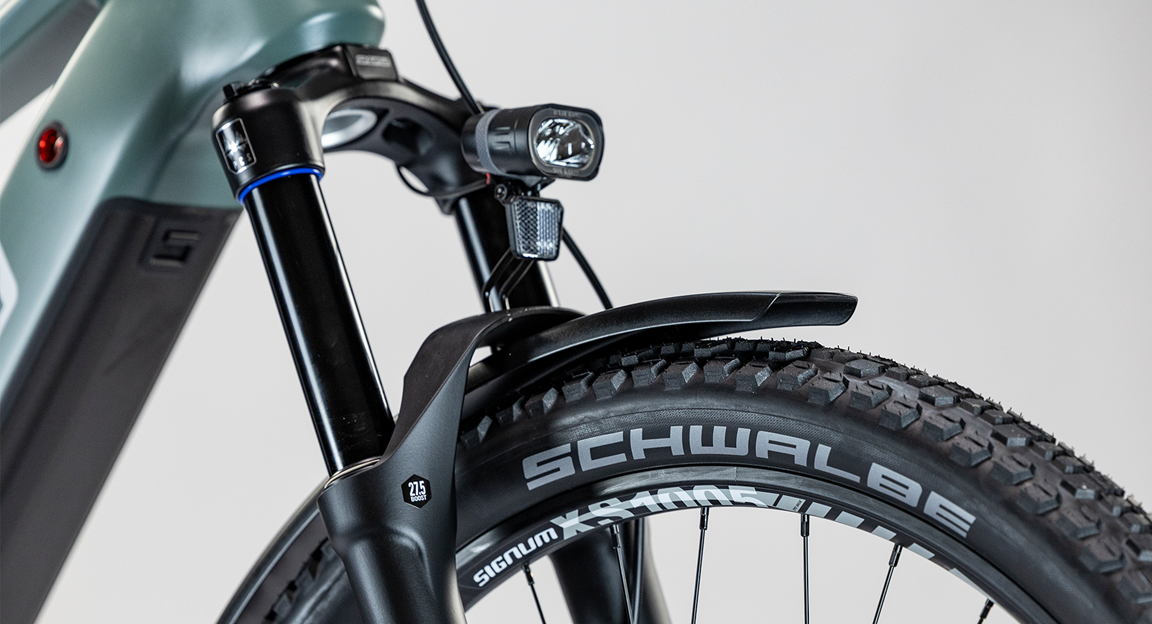

Fork : SUNTOUR Mobie 36 2CR DS travel 140mm 27.5"

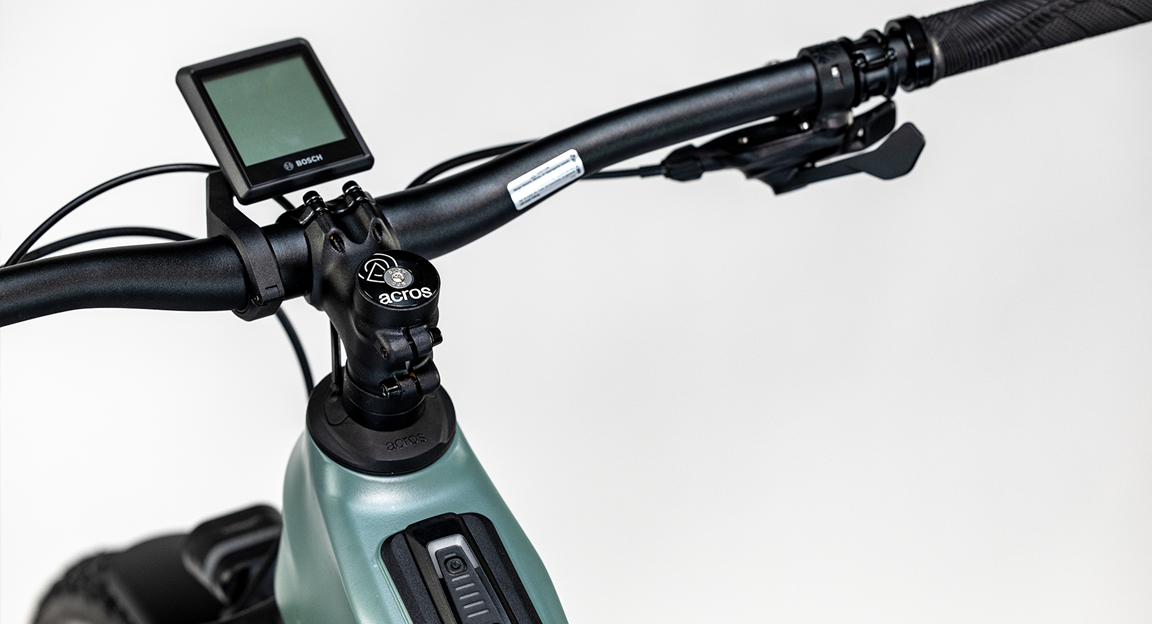

Handlebar : SIGNUM Aluminium 31.8x760mm w/HERRMANS Shark DD38R grips
Rear derailleur : SRAM SX 12 speed
Crankset : FSA 34T w/CK-762 crank 165mm
Wheels :
- F: SIGNUM 27.5" 110×15 tubeless ready
- R: SIGNUM 27.5" 148×12 tubeless ready
Brakes : SRAM DB8 4 pistons rotor 200-200
Drive unit : BOSCH Performance NEW CX (BDU38) 36V 250W 85Nm Torque Smart System
Battery : BOSCH Powertube 800Wh

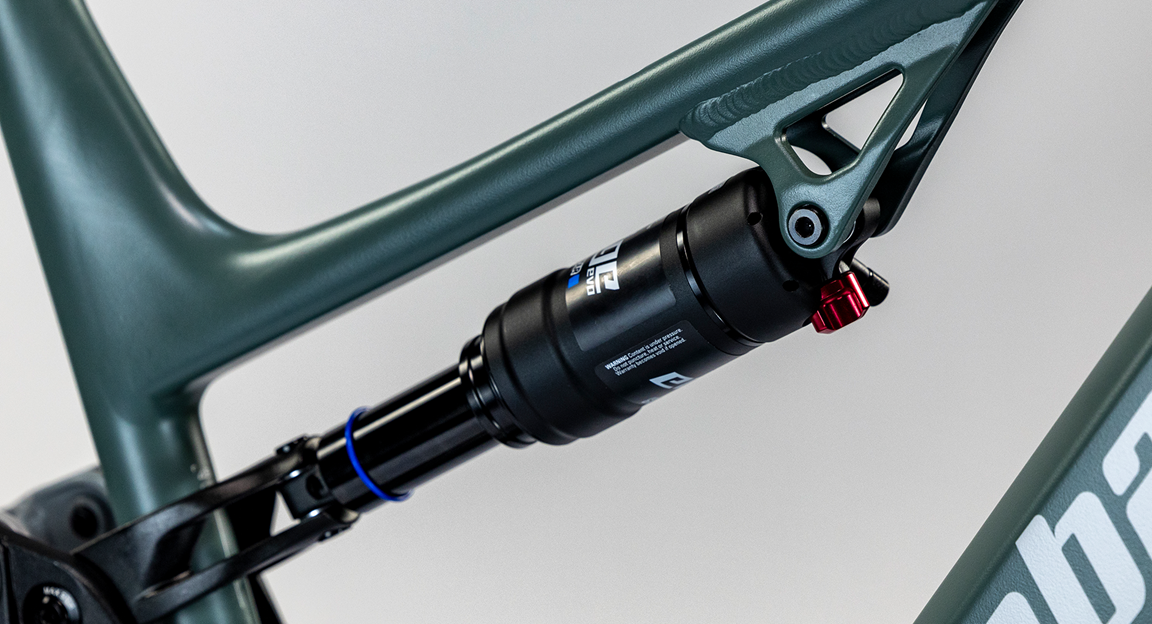

Rear Shock : SUNTOUR Edge Evo Metric R 210×65

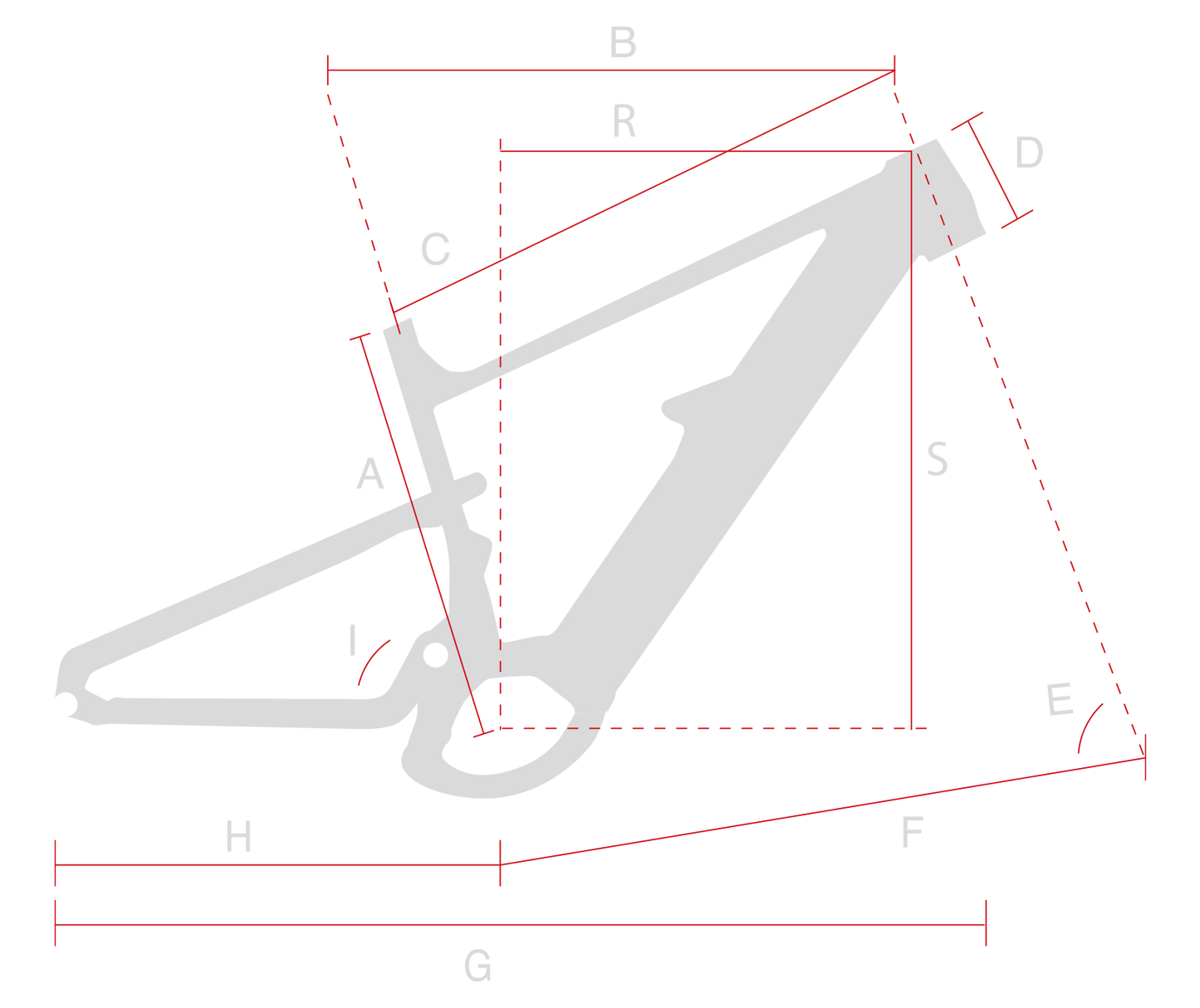

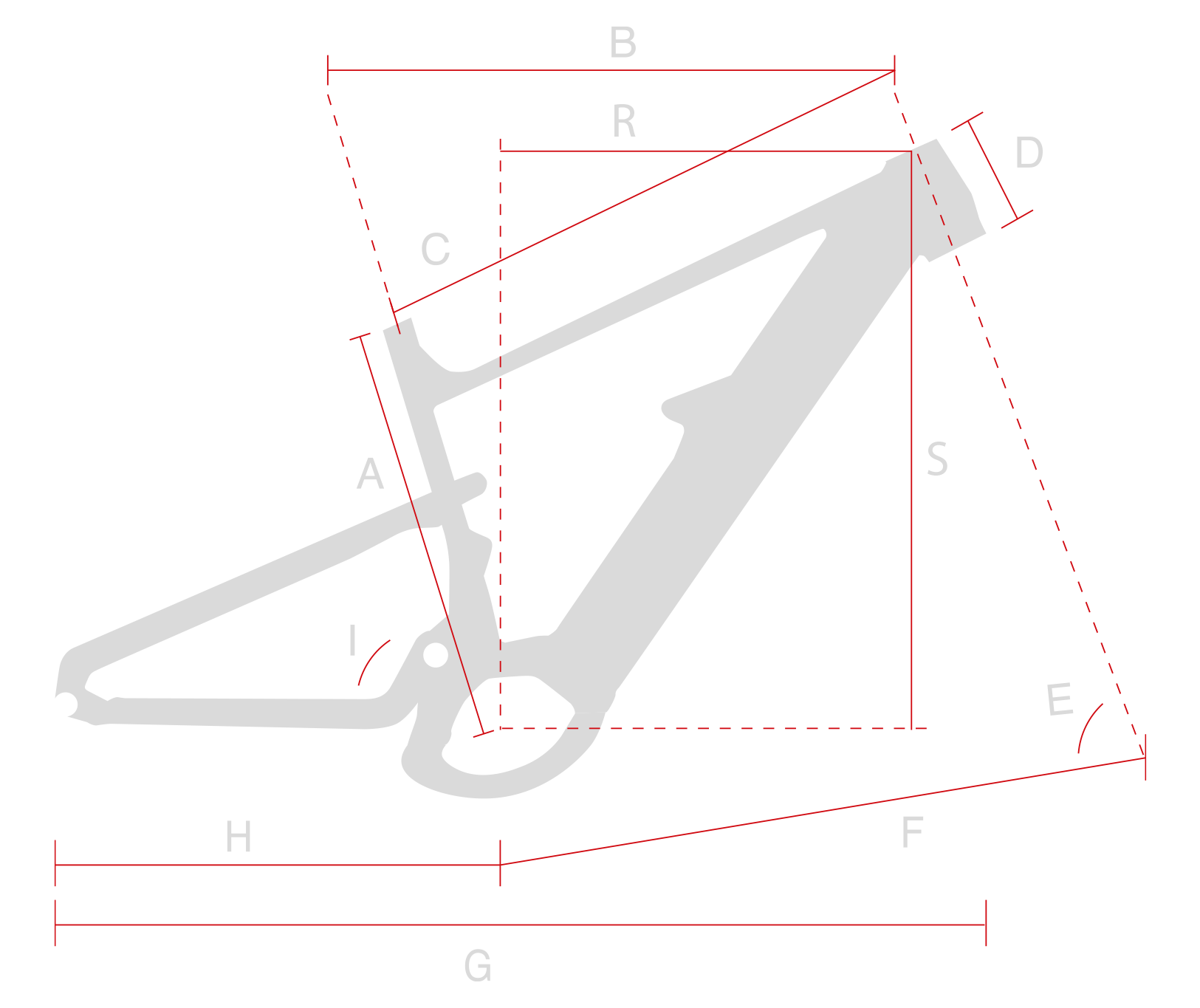

BIKE GEOMETRY
41 : A:410 | B: 590 | C: 578 | D: 110 | E: 65 | F: 760 | G: 1219 | H: 460 | I: 76 | R: 435 | S: 620
43 : A:430 | B: 609 | C: 593 | D: 110 | E: 65 | F: 780 | G: 1239 | H: 460 | I: 76 | R: 455 | S: 620
46 : A:460 | B: 630 | C: 612 | D: 115 | E: 65 | F: 802 | G: 1261 | H: 460 | I: 76 | R: 475 | S: 625
49 : A:490 | B: 653 | C: 633 | D: 125 | E: 65 | F: 826 | G: 1285 | H: 460 | I: 76 | R: 495 | S: 634
