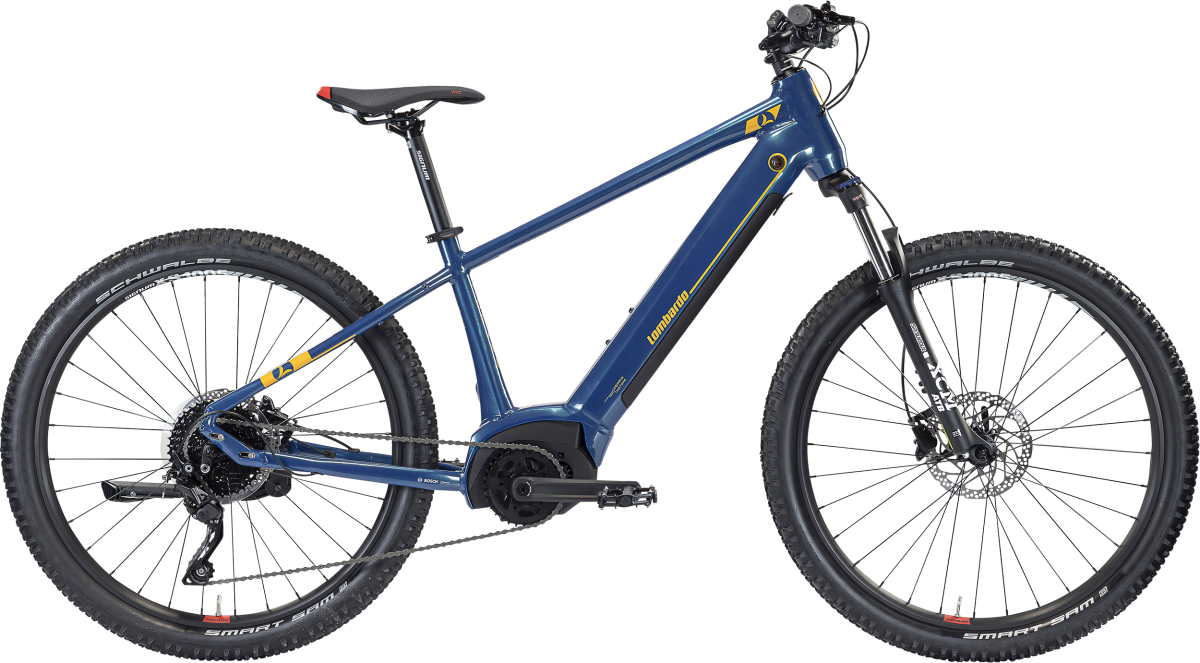

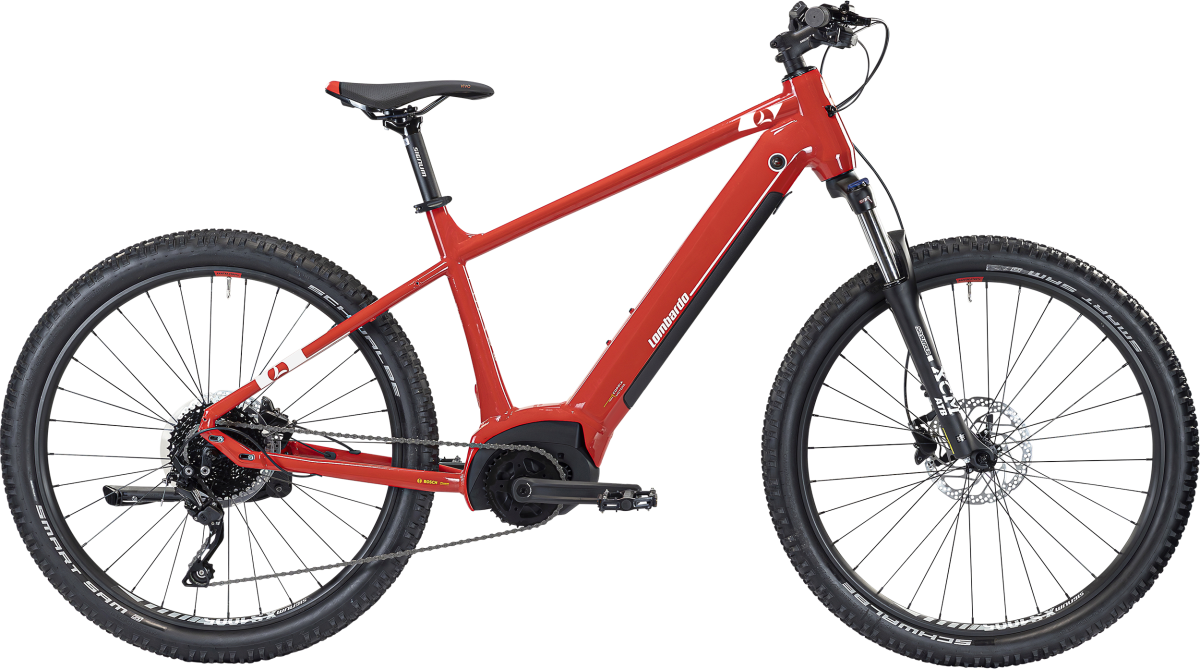

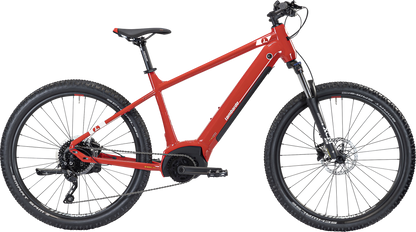

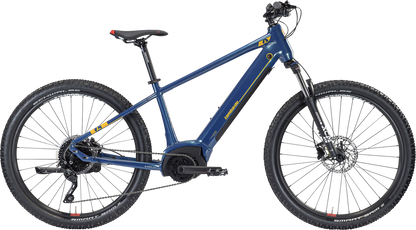

LOMBARDO Tonale

SPECS

Frame : Mtb 27,5"+ Alloy 6061 135mm QR Integrated battery

Seat post : SIGNUM Alloy Black 31,6mm

Stem : SIGNUM Alloy Black 31,8x60mm

Shift lever : SHIMANO SL-M6000 10speed

Cassette : SHIMANO CS-M4100 11-42t 10 speed

Tyres : SCHWALBE Smart Sam 27,5" x 2,60

Saddle : SELLE ROYAL Vivo

Display : BOSCH Led remote Smart System

Fork : SUNTOUR XCM HLO 27,5" travel 100mm

Handlebar : SIGNUM Alloy Black Oversize 700mm w/HERRMANS Diamond DD25 grips

Rear derailleur : SHIMANO Deore M8000 11 speed

Crankset : FSA 32T w/CK-320 crank 170mm

Wheels :

• F: SIGNUM 27.5" 100×15
• R: SIGNUM 27.5" 135mm QR

Brakes : SHIMANO MT200 Hydraulic Disc Rotor 180-180

Drive unit : BOSCH Performance 36V 250W 75Nm Torque Smart System

Battery : BOSCH PowerTube 500Wh

Kickstand : URSUS Alloy

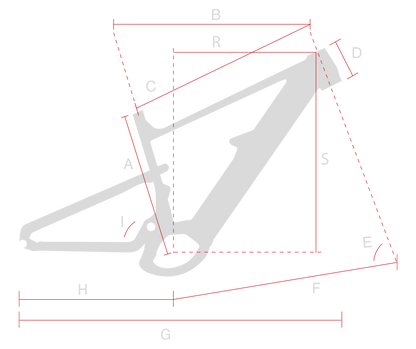

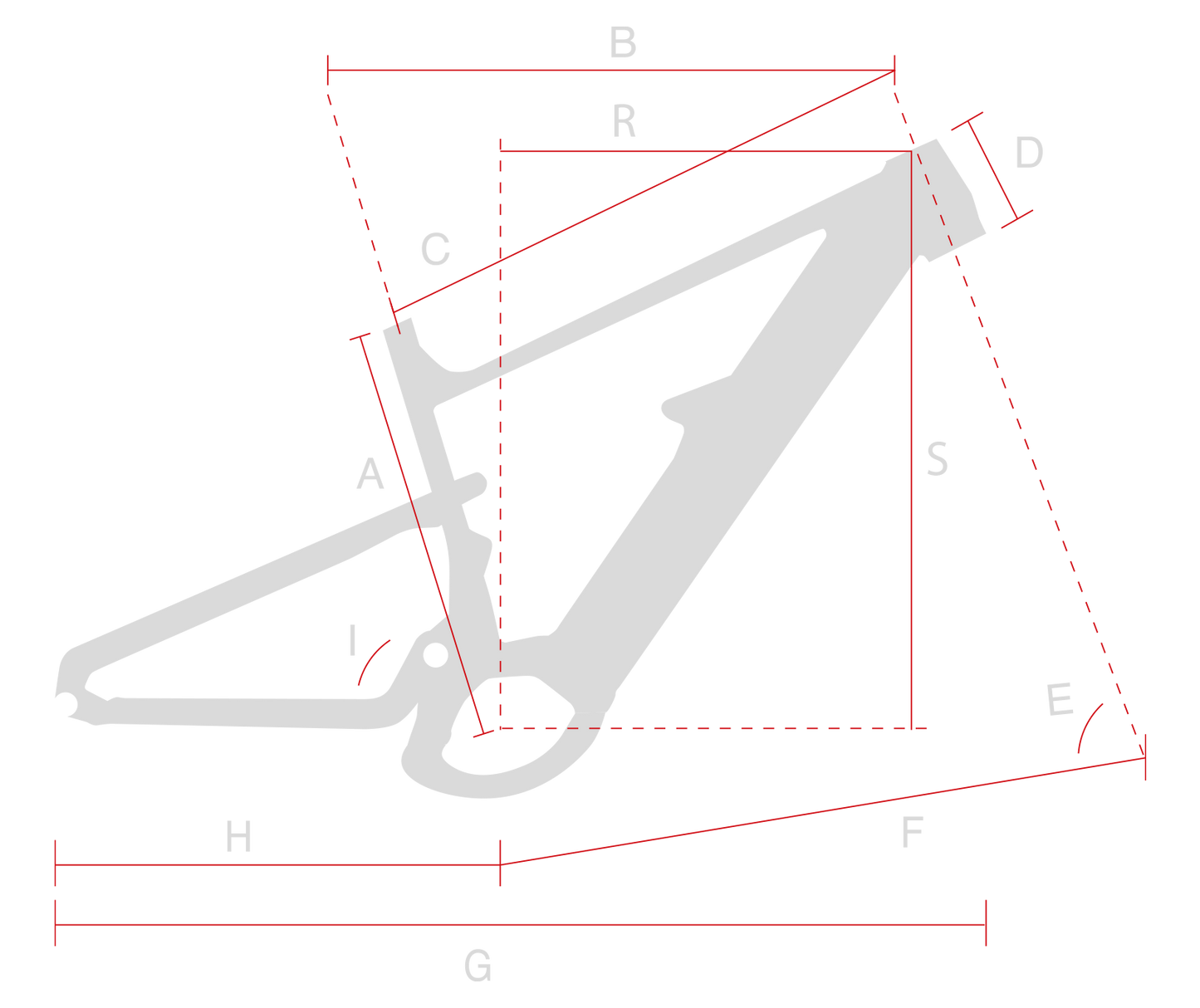

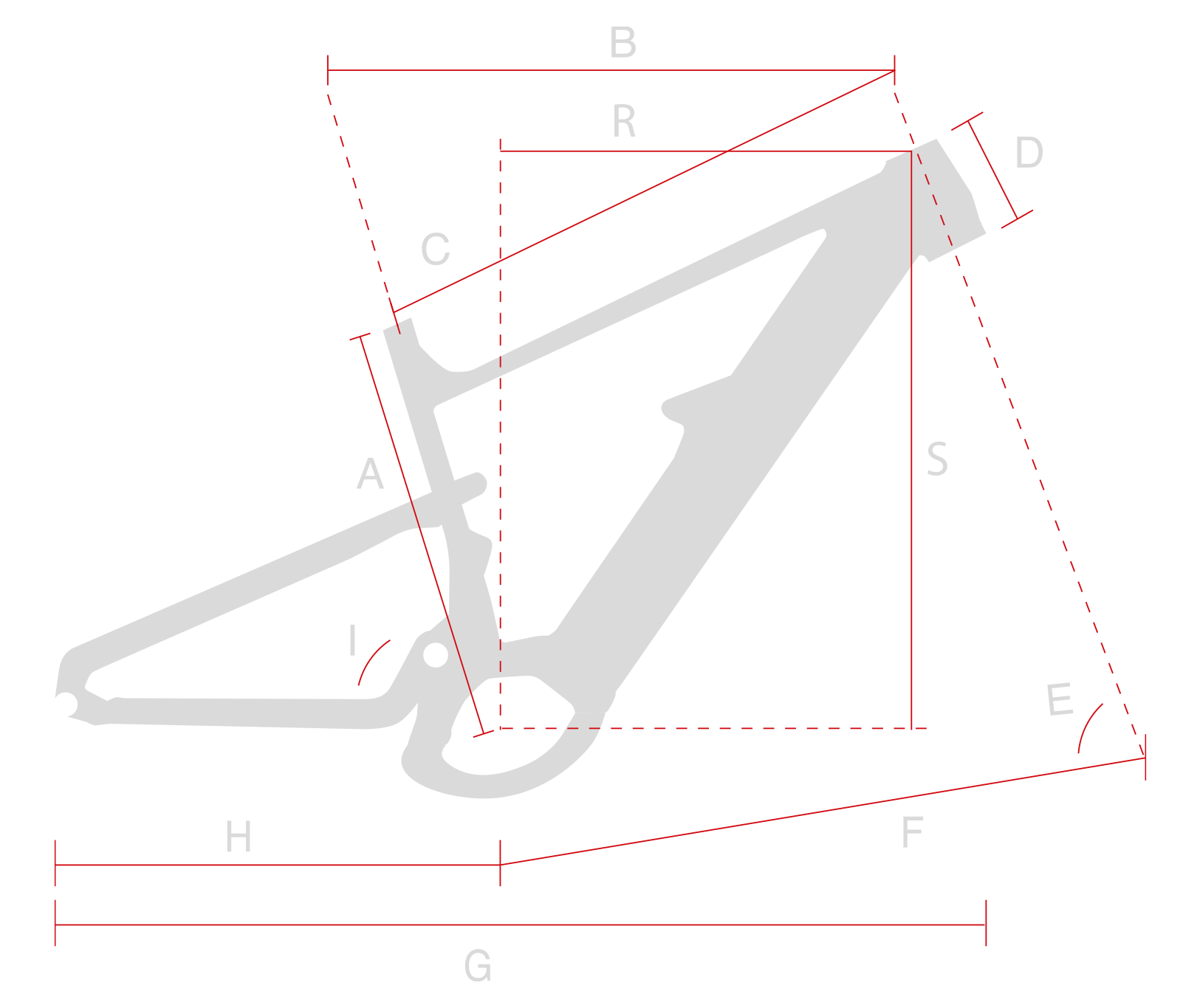

BIKE GEOMETRY

43 : A:430 | B: 600 | C: 579 | D: 140 | E: 70 | F: 660 | G: 1263 | H: 500 | I: 73

48 : A:480 | B: 615 | C: 592 | D: 140 | E: 70 | F: 675 | G: 1263 | H: 500 | I: 73

53 : A:530 | B: 630 | C: 605 | D: 140 | E: 70 | F: 690 | G: 1263 | H: 500 | I: 73
