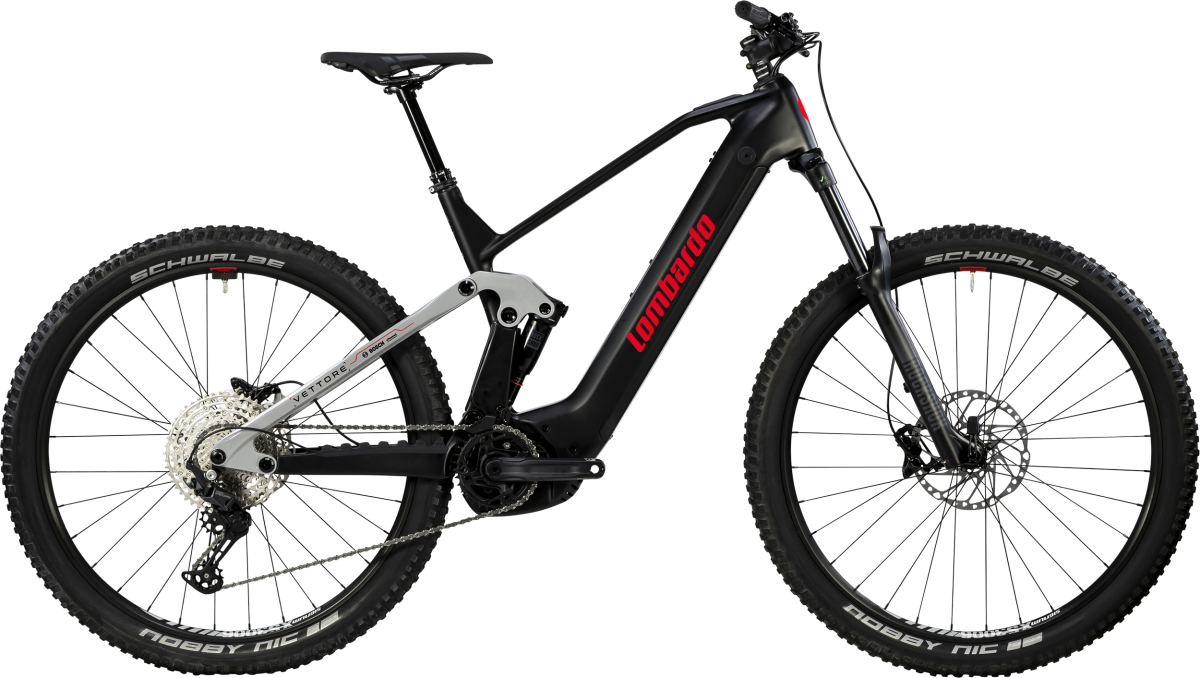

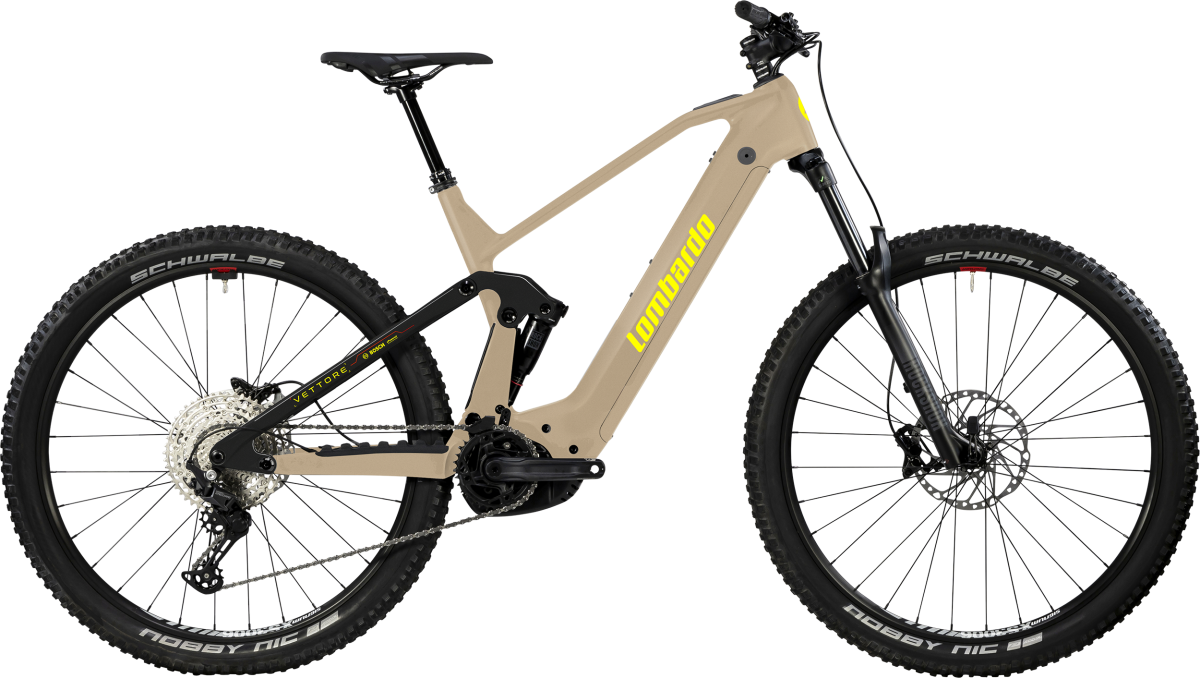

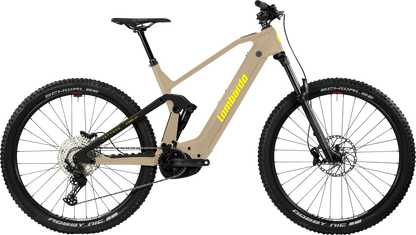

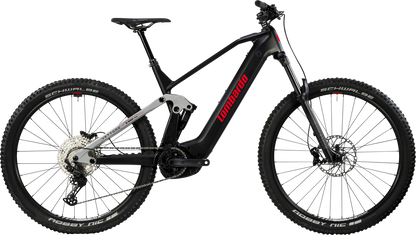

LOMBARDO Vettore

SPECS

Frame : Full Suspension Carbon 29 148x12mm Rear travel 140mm Integrated battery UDH dropout

Seat post : KS RAGE-i 30.9mm t: 125mm/150mm/170mm

Stem : SIGNUM 35x55mm

Shift lever :  SRAM SX 12speed

Cassette : SRAM SX Eagle PG 1210 11-50t

Tyres :

• F: VITTORIA Martello 29×2.6 Black
• R: VITTORIA Martello 27.5×2.6 Black

Saddle : SELLE S.MARCO Gnd

Display : BOSCH System Controller + Mini Remote

Fork : ROCK SHOX Domain Gold R travel 170mm 29"

Handlebar : SIGNUM Aluminium 35x760mm w/HERRMANS Shark DD38R grips

Rear derailleur : SRAM SX 12 speed

Crankset : FSA 34T w/CK-762 crank 165mm

Wheels :

• F: SUNRINGLE Duroc SD37 COMP 29" 110×15 tubeless ready
• R: SUNRINGLE Duroc SD37 COMP 27.5" 148×12 body HG bodyhub tubeless ready

Brakes : SRAM DB8 4 pistons rotor 200-200

Drive unit : BOSCH Performance NEW CX (BDU38) 36V 250W 85Nm Torque Smart System

Battery : BOSCH Powertube 800Wh

Rear Shock : ROCK SHOX Super Deluxe R2CT 230×65,

• 41: Spring 400lbs/in
• 43: 450lbs/in
• 46: 450bs/in
• 49: 500lbs/in

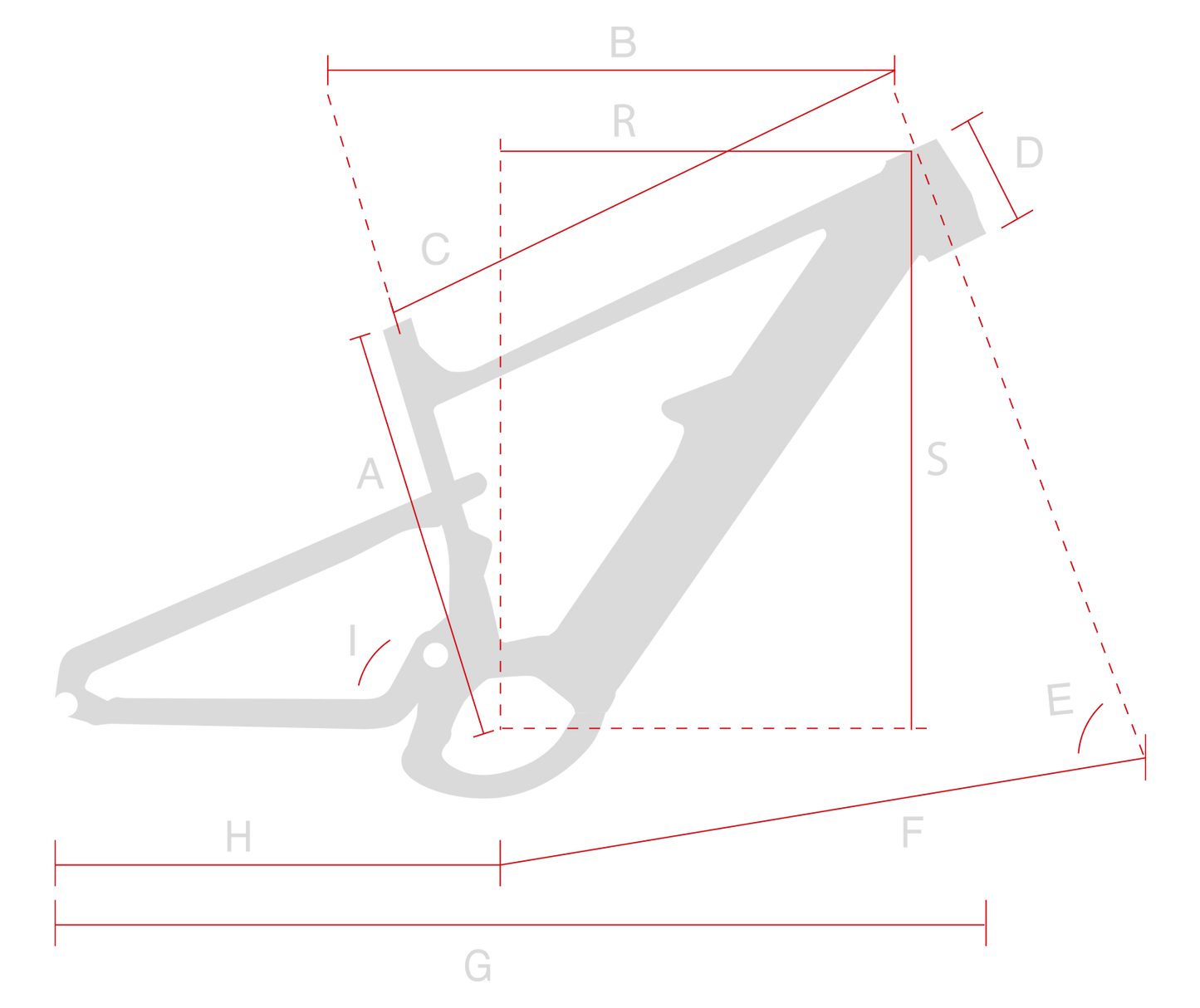

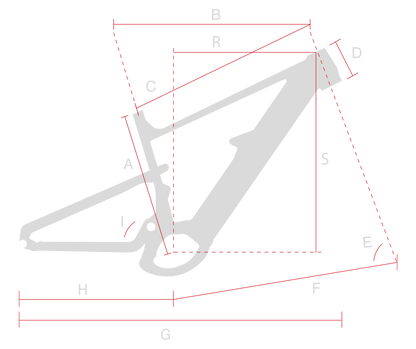

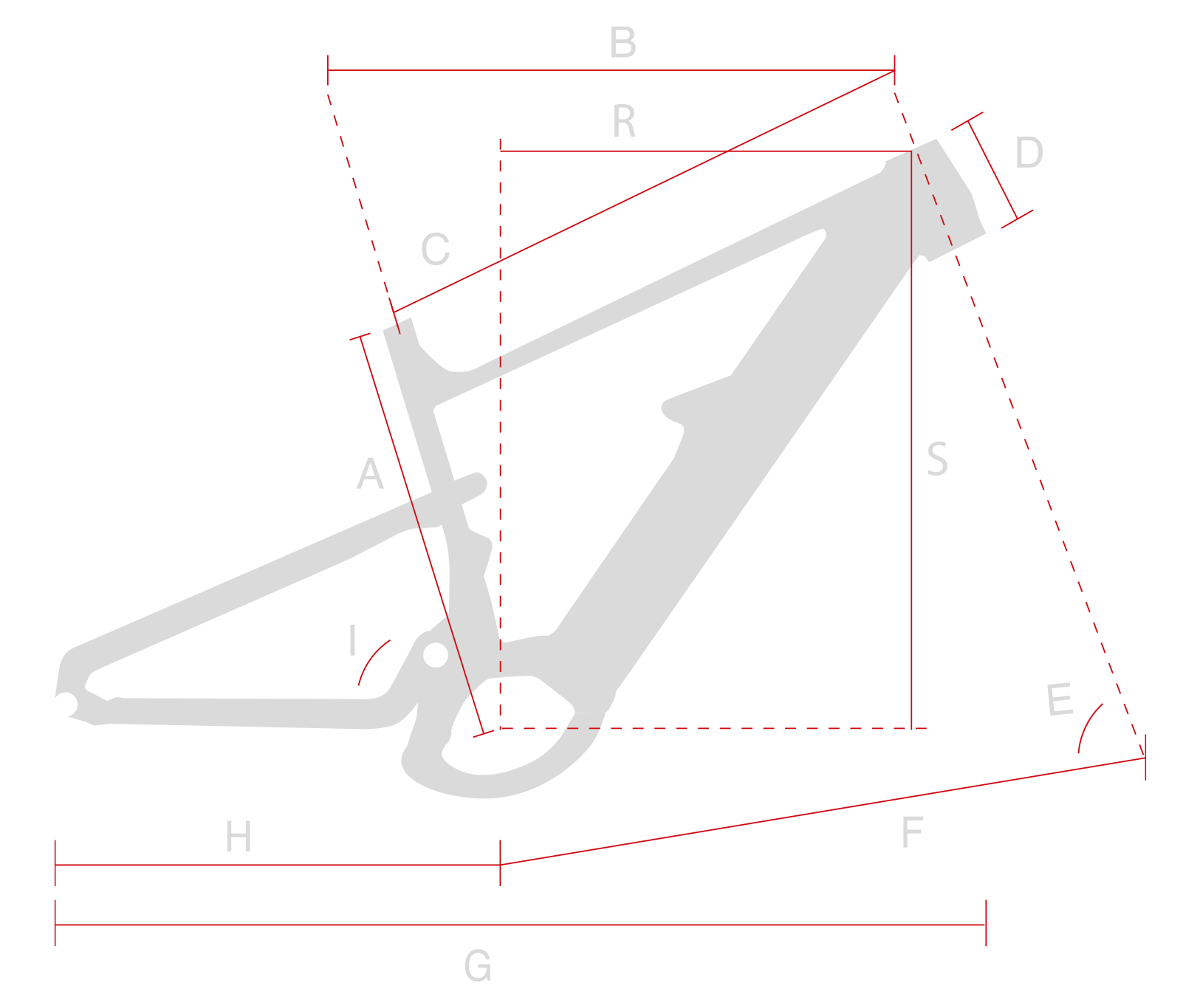

BIKE GEOMETRY

41 : A:410 | B: 588 | C: 573 | D: 110 | E: 64 | F: 770 | G: 1219 | H: 450 | I: 76 | R: 435 | S:615

43 : A:435 | B: 608 | C: 590 | D: 110 | E: 64 | F: 791 | G: 1239 | H: 450 | I: 76 | R: 455 | S:615

46 : A:465 | B: 629 | C: 608 | D: 115 | E: 64 | F: 813 | G: 1261 | H: 450 | I: 76 | R: 475 | S:619

49 : A:490 | B: 651 | C: 630 | D: 125 | E: 64 | F: 837 | G: 1285 | H: 450 | I: 76 | R: 490 | S:628
